2端口USB DVI Dual Link KVMP™多电脑切换器
CS1782A USB DVI Dual Link KVMP™多电脑切换器的推出，为KVM产品功能创造了革命性的新方向。此款产品整合了2端口KVM多电脑切换器与2端口USB Hub，同时支持DVI接口的显示器与音频功能。此外，CS1782A提供的进阶功能，例如支持nVidia 3D Vision ready120Hz 3D显示、游戏键盘，并可通过鼠标切换选择连接端口，提供用户弹性化、方便的使用环境。
功能特点：
2端口DVI KVMP™多电脑切换器，支持USB 2.0与7.1立体环绕声道
一组USB控制端可控管2台电脑与2台额外的USB设备
内建的2端口USB 2.0 Hub完全符合USB 2.0规范
具备7.1声道环绕音效支持
可通过前端面板按键、热键与鼠标选择电脑NEW!
跨平台支援–Windows, Linux, Mac与Sun*
可独立切换电脑、USB接口设备与音频
支持DVI digital与DVI analog屏幕–符合DVI规格
高视频分辨率：1920 x 1200@60Hz(Single Link)；2560 x 1600@60Hz(Dual Link)
nVidia 3D Vision Ready：搭配120Hz LCD屏幕与3D立体眼镜，可创造出具有1920 x 1080分辨率的3D环境
支持宽屏幕分辨率
兼容HDCP规格
ATEN独家视频动态同步显示技术(Video DynaSync™)–在切换连接端口时保持最佳视频显示分辨率,能避免电脑开机时发生分辨率不兼容的状况
电源开启侦测–若使用中的电脑关机，CS1782A/CS1784A会自动切换至次台电源开启的电脑NEW!
控制端鼠标端口仿真/bypass功能–支持多数鼠标驱动程序与多功能鼠标
控制端键盘bypass功能–支持多数游戏/多媒体键盘NEW!
支持键盘与鼠标信号仿真，确保开机零失误
支持及仿真Mac/Sun键盘*
支持多国语言键盘–英文、日文、法文
自动扫描模式–可定时自动监看所有电脑

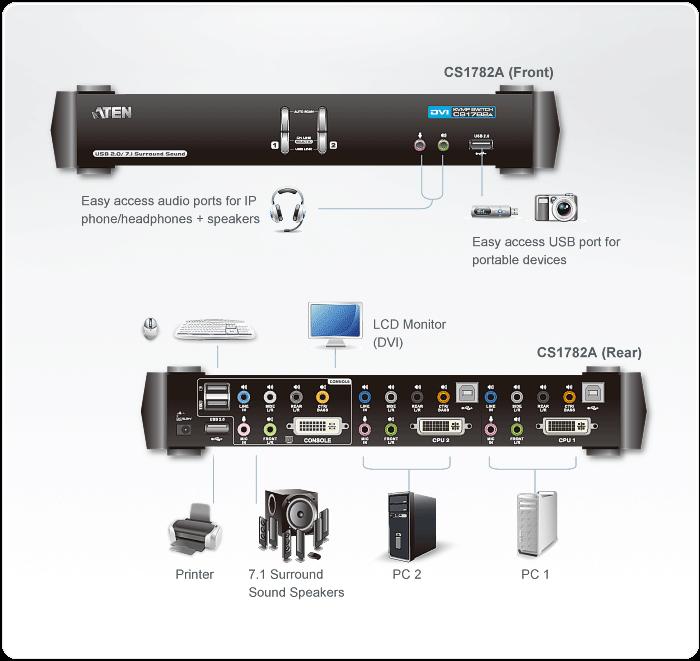

连线图：
技术规格：
| 电脑连接数 |
2 |
| 连接端口选择 |
前端面板按键、热键、鼠标 |
| 接口 |
控制端
连接端口 |
键盘 |
1 x USB Type A 母头 (黑; 背板) |
| 显示器 |
1 x DVI-I 母头 (白) |
| 鼠标 |
1 x USB Type A 母头 (黑; 背板) |
| 音频 |
2.1扬声器输出 (7.1前置扬声器输出) |
2 x Mini Stereo Jack 母头 (绿; 1 x 前板, 1 x 背板) |
| 输入 |
1 x Mini Stereo Jack 母头 (蓝) |
中置
扬声器输出 |
1 x Mini Stereo Jack 母头 (灰) |
后置
扬声器输出 |
1 x Mini Stereo Jack 母头 (黑) |
| 中央声道与重低音扬声器 |
1 x Mini Stereo Jack 母头 (橘) |
| 麦克风 |
2 x Mini Stereo Jack 母头 (粉红; 1 x 前板, 1 x 背板) |
KVM
连接端口 |
键盘 / 鼠标 |
2 x USB Type B
母头 (白) |
| 显示器 |
2 x DVI-I 母头
(白) |
| 音频 |
2.1扬声器输出(7.1前置扬声器输出) |
2 x Mini Stereo Jack 母头 (绿) |
| 输入 |
2 x Mini Stereo Jack 母头 (蓝) |
中置
扬声器输出 |
2 x Mini Stereo Jack 母头 (灰) |
后置
扬声器输出 |
2 x Mini Stereo Jack 母头 (黑) |
| 中央声道与重低音扬声器 |
2 x Mini Stereo Jack
母头 (橘) |
| 麦克风 |
2 x Mini Stereo Jack
母头 (粉红) |
| 电源 |
1 x DC Jack |
| USB 2.0 Hub |
2 x USB Type A 母头 (白; 1 x 前板, 1 x 背板) |
| 开关 |
已选泽 |
2 x Pushbutton |
| LEDs |
联机/已选泽 |
2 (橘) |
| USB连接 |
2 (绿) |
| 信号仿真 |
键盘 / 鼠标 |
USB |
| 视频分辨率 |
DVI Dual Link: 2560x1600
DVI Single Link: 1920 x 1200 |
| 扫描区间 |
1–99 秒
(5秒为默认值) |
| 耗电量 |
DC 5.3V, 9 W |
| 作业环境 |
操作温度 |
0 -50°C |
| 储存温度 |
-20-60°C |
| 湿度 |
0–80% RH, 无凝结 |
| 机体属性 |
外壳 |
金属 |
| 重量 |
0.90 kg |
尺寸
( 长 x 宽 x 高 ) |
27.00 x 8.70 x 5.50 cm |
2-Port USB DVI Dual Link KVMP™ Switch CS1782AThe CS1782A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.nVidia 3D_for CS1642/1644/1782A/1784A ROHS WeeeShare Add to ComparePackage Contents1x CS1782A USB DVI Dual Link KVMP™ Switch2x Custom DVI-D KVM Cables sets2x Custom 7.1 Channel Surround Sound Cable Sets1x Power Adapter1x User Manual1x Quick Start GuideYour cart ×TOTALUSD$0.00Shipping and discount codes are added at checkout.Checkout Buy Now ! Awards won by this product tw.msn.com Features Diagram Specification Applications Support and Download2-port DVI KVMP Switch with USB 2.0 and 7.1 Surround Sound AudioOne USB console controls two computers and two additional USB devices2-port built in USB 2.0 hub fully compliant with the USB 2.0 specificationFull bass response for high quality 7.1 channel surround sound systemsComputer selection via font panel pushbuttons, hotkeys, and mouse NEW!Multiplatform support – Windows, Linux, Mac, and Sun*Independent switching of KVM, USB, and Audio focusDVI digital and analog monitor support – fully compliant with the DVI specificationsSuperior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080HDCP compatibleSupport widescreen resolutionsVideo DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between portsPower on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction miceConsole keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!Complete keyboard emulation for error-free bootingMac/Sun keyboard support and emulation*Multilingual keyboard mapping – supports English, Japanese, and French keyboardsAuto Scan Mode for monitoring all computersFirmware upgradable
* PC keyboard combinations emulate Mac/Sun keyboardsMac/Sun keyboard work only with their own
