KN4164V ATEN 宏正 4控64端口 KVM over ip 多电脑切换器 远程管理设备
编号:KN4164V-ax-z
品牌:   [查询该品牌全部商品]
单位:个
积分:0
重量:0 克
ATEN第四代KVM over IP切换器远程电脑管理系列方案-KN4164V支持高画质分辨率(HD分辨率1920x1200),FIPS 140-2 level 1安全性认证以及2倍速的虚拟媒体传输速率。该系列方案提供带外管控功能,包括支持外接调制解调器- 当网络断线时可以由电话联机执行BIOS层级的问题排除。
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (4598) | 评论 (0) | 评分(0)
商品介绍
详细参数
KN4164V
KVM over IP切换器远程电脑管理系列方案


ATEN第四代KVM over IP切换器远程电脑管理系列方案-KN4164V支持高画质分辨率(HD分辨率1920x1200),FIPS 140-2 level 1安全性认证以及2倍速的虚拟媒体传输速率。该系列方案提供带外管控功能,包括支持外接调制解调器- 当网络断线时可以由电话联机执行BIOS层级的问题排除。


第四代KVM over IP独家特点:
• 严密的安全性- 符合FIPS 140-2 level 1安全性认证
• 极致的虚拟媒体功能- 2倍速的虚拟媒体传输速率
• 先进的FPGA图形处理器- 支持HD高画质分辨率达1920 x 1200

通过双网络适配卡与双电源供应,KVM over IP切换器远程电脑管理系列方案可以确保持续的机房与数据中心服务,提供全天候的高可靠度。

KN系列设备可与CC2000管理软件整合使用,提供IT管理员远程控管各地数据中心与子公司,不受时间与空间的限制- 包含所有网络架构内所有IT设备,刀片服务器与虚拟机等。

为了让管理人员能控管整个机房环境,KVM over IP切换器远程电脑管理系列方案也支持刀片服务器与机箱,其包含了几项新的强大功能,例如电源整合(Power Association)功能,其可连接KVM多电脑切换器连接端口与ATEN PDU电源分配器上的电源插座,进而从切换器的界面上管理电源的运作。

KVM over IP切换器远程电脑管理系列方案其它强大的功能还包括:信息板功能、画面分割模式(Panel Array Mode™)、鼠标动态同步显示与电脑端模块ID储存。

通过ATEN KVM Over IP切换器远程电脑管理系列方案,IT管理人员可从任何地方管控机房与数据中心设备- 大幅降低差旅费用及平均维修时间,确保数据中心服务的持续运作。


第四代 KVM over IP 独家特点 :
严密的安全性 - FIPS 140-2 level 1安全等级认证
极致的虚拟媒体功能 - 2倍速的虚拟媒体传输速率
先进的FPGA图形处理器 - 支持HD高画质分辨率达1920 x 1200
四个独立的通道,可供KVM over IP远程管控


硬件
高密度连接端口 - 多达64个RJ-45接口的连接端口,占2U机架空间
笔电控制端(LUC) - 提供一组专属USB连接端口可直接连接笔记本电脑以方便控制端操作
四个独立的通道,可供KVM Over IP远程管控
内建两组10/100/1000 Mbps网络适配卡可提供局域网络冗余或双IP操作能力
支持刀片服务器
支持PS/2、USB、Sun Legacy(13W3)及串口(RS-232)连接
本地控制端支持USB键盘与鼠标
支持跨平台服务器环境:Windows、Mac、Sun、Linux以及VT100为基础的串口设备
支持音频
双电源供应
高视频分辨率 - 服务器与KVM多电脑切换器之间距离最远达50米时,本地控制端视频分辨率最高可达1920x1200@60Hz,32位色深;远程视频分辨率最高可达1920x1200@60Hz,24位色深
单一层级可监控多达64台服务器,或通过占口级联方式,可管理多达512台服务器*
* 可兼容占口级联的KVM多电脑切换器包括:CS9134、CS9138、CS88A、KH1508、KH1516、KH1508AKH1516A。


管理
提供多达64组用户账号 - 支持多达32位用户同时分享控制
风扇转速可根据温度调整
支持终止联机功能 - 管理员可终止正在运行的用户会话
支持事件日志及Windows操作系统的log server
通过SMTP email及SNMP trap通知重要系统事件;支持SNMP trap与Syslog
管理员自定义的事件通知
支持固件更新
带外(OOBC)调制解调器拨号及回拨功能
电脑端模块ID功能:可储存连接端口信息,让管理人员将服务器重新连接到不同连接端口时,无需重新设定电脑端模块及KVM多电脑切换器
连接端口分享模式支持多位用户共同管控一台服务器
可与ALTUSEN CC2000管理软件整合使用
可与ATEN PDU电源分配器进行整合,提供远程电源控管
支持IPv6


简易的使用界面
ATEN独家画面分割模式(Panel Array Mode™)可同时让本地控制端操作员与远程访问者使用
本地控制端、browser-based及AP GUIs提供统一的多国语言界面,减少用户学习时间及提高工作效率
支持多平台的客户端系统(Windows、Mac OS X、Linux、Sun)
多种浏览器支持:IE、Chrome、Firefox、Safari、Opera、Mozilla、Netscape
纯网页技术以浏览器为基础的UI,管理员无需先安装Java软件包即可进行管理工作
用户可在同一个登入期间启动多个虚拟远程桌面以管理多台服务器
支持全屏幕或可调整虚拟远程桌面的窗口尺寸
键盘/鼠标广播功能 - 键盘与鼠标的信号可同时广播到所有连接的服务器
与本地控制端影像同步功能 - 本地控制端屏幕的EDID信息可储存于电脑端模块以利影像分辨率优化


先进的安全机制
支持远程验证机制:RADIUS、LDAP、LDAPS及MS Active Directory
支持128位SSL数据加密及2048位RSA认证以确保浏览器登入的安全性
弹性化加密设计,用户可分别为键盘/鼠标,屏幕及虚拟媒体数据选择56位DES、168位3DES、256位AES、128位RC4的任何组合,或随机的加密方式
支持IP/MAC过滤功能
可对用户及群组设定访问与控管服务器的权限
自动化CSR产生功能与第三方CA认证


虚拟媒体
虚拟媒体提供档案应用、OS操作系统修补、软件安装及诊断测试
可使用于支持USB的服务器操作系统及BIOS层级
支持DVD/CD光驱、USB储存设备、个人电脑硬盘及ISO影像


虚拟远程桌面窗口
可调整视频质量以最佳化数据传输速度;单色色深设定,临界值及信号干扰设定,可让用户在低频宽的情况下压缩数据流量大小已达到最佳的传输量
支持全屏幕显示或可调式窗口显示
远程用户间可通过信息板功能沟通
鼠标动态同步显示技术(Mouse DynaSync™) - 可自动同步本地与远程鼠标移动位置
支持退出宏
支持多国语言屏幕键盘
BIOS层级管控用于排除故障


KN4164V Diagram




电脑连接数直接连接数64
最大连接数512 (占口级联KVM切换器)
连接端口选择面板按键、热键、GUI

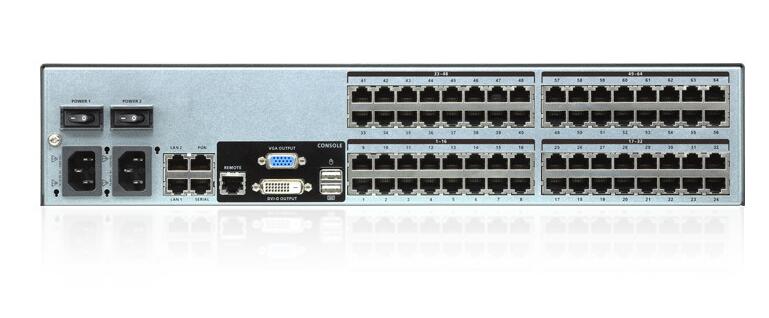

接口控制端连接端口键盘/鼠标2 x USB 母头 ( 黑)
显示器1 x DVI-D 母头 ( 白) / 1 VGA HDB-15( 蓝)
远程控制端保留连接端口1 x RJ-45 母头 ( 黑)
电脑端连接端口64 x RJ-45 母头 ( 黑)
虚拟媒体3 x USB 母头 ( 黑)
音频2 x 音频插孔 母头 ( 粉; 绿)
LUC1 x Mini-USB 母头 ( 黑)
PON/RS-2321 x RJ-45 母头 ( 黑)
串口/RS-2321 x RJ-45 母头 ( 黑)
LAN2 x RJ-45 母头 ( 黑)
电源2 x IEC 60320/C14
切换开关电源开关2 x 翘板开关
LED指示灯上线/已选择64 ( 绿/ 橘)
电源2 (蓝)
联机 10 / 100 / 1000 Mbps2 ( 橘/ 绿)
按键连接端口选择2 x 按键
重置1 x 半嵌式按键
仿真功能键盘/鼠标PS/2; USB
视频分辨率1920 x 1200
输入额定值100–240V AC; 50-60 Hz; 1A
耗电量单电源110V/67.9W; 220V/66.4W
双电源110V/26.2W; 220V/25.4W
扫描区间1-255 秒
作业环境操作温度0 - 40˚C
储存温度-20 - 60˚C
湿度0–80% RH, 无凝结
机体属性外壳金属
重量7.00 kg
尺寸 ( 长 x 宽 x 高 )43.36 x 41.26 x 8.80 cm(19”/2U)
  • * The specification and pictures are subject to change without notice.

KN4164V
64-Port KVM over IP Switch
1 local/4 remote user access

KN4164V Zoom In KN4164V  KN4164V  KN4164V
ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN4164V features superior video quality (HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

New KN Series Exclusive :

• Advanced FPGA graphics processor – with an HD resolutions of 1920 x 1200

• Extreme virtual media speed – 2 x faster virtual media transmission speed

• High grade security – supports FIPS 140-2 level 1 security standards

With dual on-board NICs and dual power supplies, the KN series are built for reliability, to ensure 24/7 availability of remote access to all servers.

KN series devices can be integrated into the CC2000 Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world – allowing IT administrators to remotely monitor and control all devices on a network, including blade servers and virtual machines.

To help you manage and control an entire data center, ATEN KVM over IP switches support blade servers and chassis. With powerful features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches’ user interface.

Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode™, Mouse DynaSync™ and the Adapter ID.

ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services possible.


New KN Series Exclusive
Advanced FPGA graphics processor – with an HD resolution of 1920 x 1200
Extreme virtual media speed – 2 x faster virtual media transmission speed
High grade security – supports FIPS 140-2 level 1 security standards
Simultaneously share one local console and four/eight independent connections to the attached servers

Hardware
High port density – RJ-45 connectors and Cat 5e/6 cable for up to 64 ports in a 2U housing
Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation
Four or eight separate buses for remote KVM over IP access
Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
Blade server support
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Audio enabled
Dual Power Supply
High video resolution – up to 1920 x 1200 @ 60Hz – 24 bit color depth for the local console up to 50m, and 24 bit for the remote sessions
Monitor and control up to 64 computers on a single level, or control up to 512 computers in a cascade*
Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A

Management
Up to 64 user accounts – up to 32 users simultaneously share the control
Green IT-Fan speed varies according to temperature
Event logging and Windows-based Log Server support
Critical system event notification via SMTP email; SNMP trap and Syslog support
Customizable events notification
Firmware upgradeable
Out-of-Band Access-Modem dial-in/dial out/dial back support
Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
Port Share Mode allows multiple users to gain access to a server simultaneously
Integration with ATEN Altusen CC2000 Management Software
Power Association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
IPv6 capable

Ease-to-Use Interface
ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
Full-screen or sizable and scalable Virtual Remote Desktop
Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization

Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports SSL 128-bit data encryption and RSA 2048-bit certificates to secure users log in from browser
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Support for IP/MAC Filter
Configurable user and group permissions for server access and control
Automated CSR creation utility and third party CA certificate authentication

Virtual Media
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images

Virtual Remote Desktop
Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
Mouse DynaSync-automatically synchronizes the local and remote mouse movements
Exit Macros support
On-screen keyboard with multilanguage support
BIOS-level access for trouble shooting
