IP8000 ATEN 宏正 远程控管PCI卡(卡式CN8000)
编号:IP8000
品牌:   [查询该品牌全部商品]
单位:个
积分:0
重量:100 克
IP8000是一张具备控管功能的PCI卡,管理人员可从远程访问及控管已安装IP8000的服务器;只要透过标准的网络浏览器或独立的Windows及Java应用程序,管理人员即可轻松从远程进行跨平台的服务器存取与管理
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (1819) | 评论 (0) | 评分(0)
商品介绍
详细参数

IP8000是一张具备控管功能的PCI卡,管理人员可从远程访问及控管已安装IP8000的服务器;只要透过标准的网络浏览器或独立的Windows及Java应用程序,管理人员即可轻松从远程进行跨平台的服务器存取与管理。



功能特点:

  • 通过标准PCI卡,无论身在何处都可拥有远程服务器的存取及管理功能
  • 通过USB 2.0数据传输提供虚拟媒体功能
  • 支持远程电源控管及重置
  • 提供64组使用者账号;最高支持32位使用者同时登入以共享同一个通道
  • 信息板功能让登入的用户可相互进行实时沟通,并让其中一位使用者拥有专属控制KVM的功能
  • 支持外部验证:RADIUS; LDAP; LDAPS; MS Active Directory
  • 通过任何浏览器即可随时监控建置Web-based 接口windows 与Java应用程序的服务器
  • 非浏览器存取的用户可通过Windows GUI 接口及Java Client软件操作 - Java Client 可支持任何操作系统
  • 支持TCP/IP、HTTP、HTTPS、UDP、DHCP、SSL、ARP、DNS、ICMP及CHAP
  • 支持10-Base-T、100-Base-T
  • 超高视频分辨率:最高达1600 x 1200@60Hz;远程系统可达24位色深
  • 通过灰阶模式与视频质量的设定,达到频宽最佳化状态
  • 支持密码保护及先进加密技术的强大安全机制
  • 可靠的128位SSL网络数据加密功能
  • Enable/disable浏览器操作
  • 三层密码验证机制 - 多位管理者、使用者及监看者
  • 事件日志功能
  • 支持远程固件更新
  • 支持多种电脑端操作系统:Windows ;Redhat 7.1或以上版本;FreeBSD, Novell

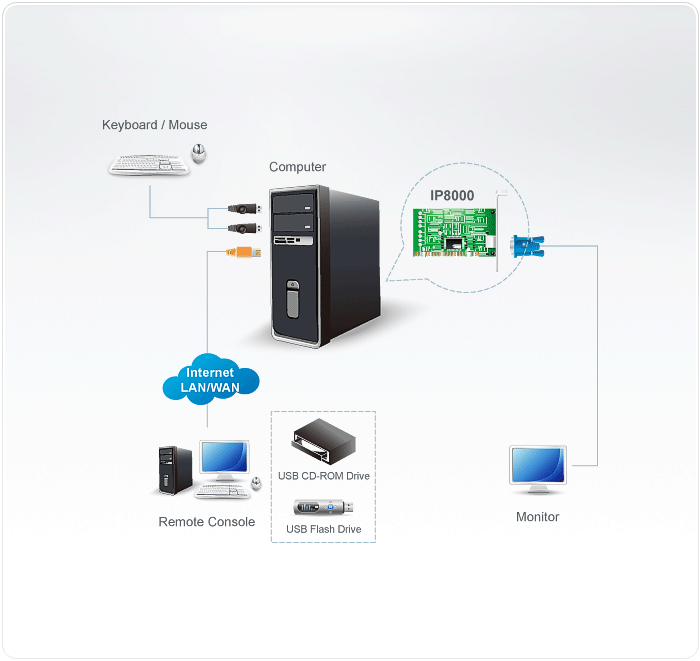

    连线图:

    技术规格:

    电脑 直接 1
    控制端连接数 1
    接口 电脑 显示器/
    键盘/
    鼠标
    1 x SPHD-15 母头(绿)
    视频输出 1 x HDB-15 母头 (蓝)
    LAN 1 x RJ-45 母头
    电源 1 x DC电源插座
    LED指示灯
    联机 1 (绿)
    10/100 Mbps 1 (绿 / 橘)
    仿真功能 键盘/鼠标 USB
    视频分辨率 1600 x 1200@60Hz; DDC2B
    耗电量 DC5V, 6W
    作业环境 操作温度 0 - 50°C
    储存温 -20-60°C
    湿度 0 - 80% RH, 无凝结
    机体属性
    重量 0.10 kg
    尺寸
    (长×宽×高)
    15.35 x 12.00 x 2.15 cm


  • Remote Management PCI Card

    IP8000

    The IP8000 is a PCI card implementation of a control unit that provides "over-IP" access and control of the server it is installed in. The IP8000 allows multi-platform access and control of the server from remote locations using a standard Internet browser or with stand-alone Windows and Java applications

    ROHS Weee

    Share   Add to Compare

    Package Contents

    1x Remote Management PCI Card

    1x Custom KVM Cable Set

    1x Feature Cable

    1x Power Adapter

    1x Software CD

    1x User Instructions

     Features

     Diagram

     Specifications

     Applications

     Support and Download

    Standard PCI-sized card provides over-IP access and control of a remote server from anywhere in the world

    Virtual media via USB 2.0 data transmission

    Remote power control and reset support

    Up to 64 user accounts - Up to 32 concurrent user logins for single-bus sharing

    Message board feature allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions

    External authentication support: RADIUS

    Web-based Windows and Java implementations allow the server to be controlled from any browser

    Windows GUI and Java client software for non-browser access - the Java client works with practically all operating systems

    Supports TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP

    Supports 10Base-T, 100Base-T

    Superior video resolution* up to 1600 x 1200 @ 60Hz; 24-bit color depth for remote sessions

    Bandwidth optimization via grayscale and video quality setting

    Advanced security features include password protection and advanced encryption technologies

    Secure 128-bit SSL encryption

    Enable/disable browser operation

    Three level authentication - Multi - Administrators, Users, Viewers

    Event logging

    Remote fi rmware upgrading

    Host-side OS support– Windows ; Redhat 7.1 and above; FreeBSD, Novell
