CE370 ATEN 宏正 KVM PS/2 KVM 信号延长器 延长300米 1280*1024 支持rs232串口
编号:CE370-at-z
品牌:ATEN   [查询该品牌全部商品]
单位:个
积分:0
重量:480 克
型号:
规格:
CE370是款具备自动信号补偿功能以及RS-232串口功能的PS/2接口KVM信号延长器,可让使用者通过一组由PS/2键盘、显示器、鼠标所组成的PS/2控制端远程访问电脑系统。CE370能将控制端设置于方便存取的地点,并将系统设备摆放于安全位置,同时避免尘埃、脏乱与严苛的环境影响,让使用者能长距离部署系统设备。
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (2104) | 评论 (0) | 评分(0)
商品介绍
详细参数


PS/2 KVM 信号延长器


CE370是款具备自动信号补偿功能以及RS-232串口功能的PS/2接口KVM信号延长器,可让使用者通过一组由PS/2键盘、显示器、鼠标所组成的PS/2控制端远程访问电脑系统。CE370能将控制端设置于方便存取的地点,并将系统设备摆放于安全位置,同时避免尘埃、脏乱与严苛的环境影响,让使用者能长距离部署系统设备。


CE370支持红绿蓝三原色信号延迟调整(RGB delay tuner),可以手动方式使RGB传输信号同步化,使用者在长距离的情况下也能建置其系统设备。此外,CE370具备线路同步(line synchronizing)功能,可校正因长距离传输时所产生的颜色相位(color phase)与时间误差(timing errors),亦可手动调整红绿蓝三原色信号设定。

Rohs Weee
专利号码

CN ZL 200710181531.5 , TW I339467 , US 7585176

包装明细
  • 1x CE370L PS/2 KVM 信号延长器 (本地装置)
  • 1x CE370RQ PS/2 KVM 信号延长器 (远程装置)
  • 1x 特制PS/2 KVM连接线 (1.8 m)
  • 2x 电源变压器
  • 1x 机架安装配件
  • 1x 使用者说明书
  • 1x 快速安装卡

功能特点:

  • 通过Cat 5e线材可延伸本地与远程设备的距离达300 m
  • 抗色偏(Deskew)功能–自动同步化RGB信号延迟时间,以补偿信号因距离所造成的误差
  • 支持OSD屏幕选单功能–可通过直觉式且易操作的OSD屏幕选单系统,轻松调整视频质量
  • 可手动调整R/G/B信号设定、储存与取回
  • 可调式增益控制功能–可依距离远近以自动与手动方式补强信号传输强度
  • 双控制端操作–可通过本地与远程键盘、显示器与鼠标所组成的控制端操控系统
  • 内建ASIC芯片,提供更高的可靠性与兼容性
  • 具备自动信号补偿(ASC)与储存设定功能
  • RS-232串口连接端口–可连接串口终端机或串口装置,例如触控式显示器与条形码扫描仪(速率115200 bps)
  • 音频功能–支持立体声扬声器及麦克风
  • 按键操作模式选择(限本地设备)–通过单一按键可选择本地端操控与自动操控模式
  • 内建8KV/15KV静电保护(接触电压8KV;空气电压15KV)与2KV突波保护
  • 高视频分辨率 - 1920 x 1200@60Hz(150 m), 1280 x 1024@60Hz(300 m)
  • 高质量音频–即使距离300m远仍可维持高音频质量
  • 支持宽屏
  • 支持VGA, SVGA, SXGA(1280x1024), UXGA(1600x1200), WUXGA(1920x1200)以及multisync显示器;本地显示器支持DDC, DDC2与DDC2B
  • 支持热插拔
  • 可安装于机架
  • 无需软件即可轻松完成安装–仅需于设备间接上连接线

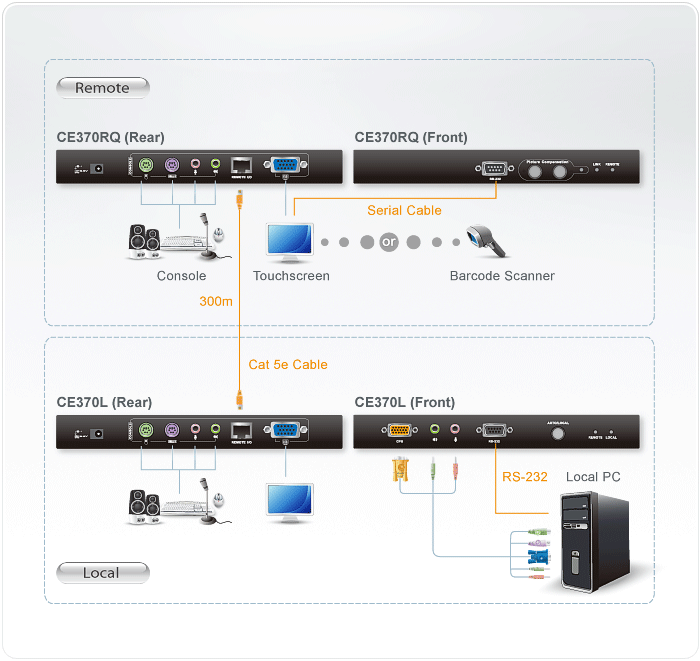

    连线图:

    技术规格:

    功能 CE370L CE370RQ
    接口 控制端连接端口 键盘 1 x 6-pin Mini-DIN 母头 (紫)
    显示器 1 x HDB-15 母头 (蓝)
    鼠标 1 x 6-pin Mini-DIN 母头 (绿)
    扬声器 1 x Mini Stereo Jack 母头 (绿)
    麦克风 1 x Mini Stereo Jack 母头 (紫)
    电脑端连接端口 键盘/显示器/鼠标 1 x SPHD-17 母头 (黄) N/A
    扬声器 1 x Mini Stereo Jack
    (绿)
    麦克风 1 x Mini Stereo Jack
    (粉红)
    RS-232 1 x DB-9 母头 (黑) 1 x DB-9 公头 (黑)
    设备至设备 1 x RJ-45 母头 (黑)
    电源 1 x DC Jack
    LED指示灯 本地 1 (绿) N/A
    远程 1 (绿) N/A
    N/A 1 (蓝)
    绿 连线 N/A 1 (橘/绿)
    远程 N/A 1 (红)
    按键 操作模式选择 1 x 按键 N/A
    颜色 N/A 1 x 按键
    选择 N/A 1 x 按键
    信号仿真 键盘/鼠标 PS/2
    视频分辨率 1920 x 1200@60Hz (150 m);
    1280 x 1024@60Hz (300 m);
    DDC, DDC2, DDC2B
    耗电量 DC5.3V/3.38W DC5.3V/6.43W
    作业环境 操作温度 0 - 50°C
    储存温度 -20 - 60°C
    湿度 0-80% RH, 无凝结
    机体属性 外壳 金属
    重量 0.49 kg 0.48 kg
    尺寸
    (长 x 宽 x 高)
    20.00 x 8.00 x 2.50 cm

  • PS/2 VGA/Audio Cat 5 KVM Extender with Deskew (1280 x 1024@300m)
    CE370
    The CE370 a PS/2 based KVM Extender with automatic signal compensation and RS-232 serial functionality allows access to a computer system from a remote PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because it allows access to a computer system from a remote console, the CE370 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.
    The CE370 supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The CE370's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.
    ROHS Weee
    Share   Add to Compare
    Package Contents
    1x CE370L PS/2 KVM Extender (Local Unit)
    1x CE370RQ PS/2 KVM Extender (Remote Unit)
    1x Custom PS/2 KVM Cable Set (1.8 m)
    2x Power Adapters
    1x Mounting Kit
    1x User Instructions





     Features
     Diagram
     Specifications
     Applications
     Support and Download
    Local and Remote Units connect at distances up to 300 m using Cat 5e cable
    Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
    On Screen Display - conveniently adjust video quality with the intuitive OSD menu system
    Manually tune the R/G/B settings, store and retrieve
    Adjustable gain control - automatically and manually adjust signal strength to compensate for distance
    Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
    Built-in ASIC for greater reliability and compatibility
    Auto Signal Compensation (ASC) and storage of settings
    RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
    Audio Enabled - supports stereo speakers and microphone
    Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
    Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
    Superior video quality - 1920 x 1200@60Hz(150 m), 1280 x 1024@60Hz(300 m)
    Superior Audio - no loss in audio quality at 300 m
    Supports Wide Screen formats *
    Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
    Hot pluggable
    Rack mountable
    Easy to install - no software required - connecting cables to the devices is all it takes

    * The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.
