CE250A ATEN 宏正 PS/2 KVM信号延长器 ,支持远近2组控制端,CAT5延长至150米 ,带自动校正
编号:CE250A
品牌:ATEN   [查询该品牌全部商品]
单位:个
积分:0
重量:320 克
型号:
规格:
延伸本地与远程服务器管理距离达150M
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (2252) | 评论 (0) | 评分(0)
商品介绍
详细参数

KVM 信号延长器


延伸本地与远程服务器管理距离达150M


Rohs Weee
专利号码

CN ZL 01124239.6 , CN ZL 200410042772.8 , CN ZL 200710181531.5 , DE 102004058233 , JP 4160936 , TW 150098 , TW I243890 , TW I339467 , US 6160543 , US 6489854 , US 7532998 , US 7585176

包装明细
  • 1x CE250A KVM 信号延长器 (本地设备)
  • 1x CE250A KVM 信号延长器 (远程设备)
  • 1x KVM 连接线 (1.8 M)
  • 1x 电源变压器
  • 1x 机架安装套件
  • 1x 快速安装指南
  • 1x 接地线说明卡

功能特点:

  • 采用Cat 5e线缆连接近端与远程设备- 最远可达150M
  • 双控制端操作- 可由近端或远程的控制端(PS/2键盘、鼠标、及显示器)管理系统
  • 可通过按钮选择所要使用的控制端
  • 超高图像分辨率- 高达1280 x 1024 @ 60 Hz
  • 支持VGA、SVGA、以及Multisync显示器- 近端显示器支持 DDC; DDC2; DDC2B
  • 支持Microsoft Intellimouse 以及大多数鼠标上的滚轮
  • 信号自动增益功能- 针对距离的远近自动调整视频信号强度
  • 内置8KV静电放电防护与2KV突波保护
  • 近程设备可从电脑端获取电源,因此近程设备仅需于近端电脑或KVM安装结构下的电脑供电不足时再额外接续电源
  • 支持机架固定
  • 内置ASIC芯片,确保更高的可靠性与兼容性

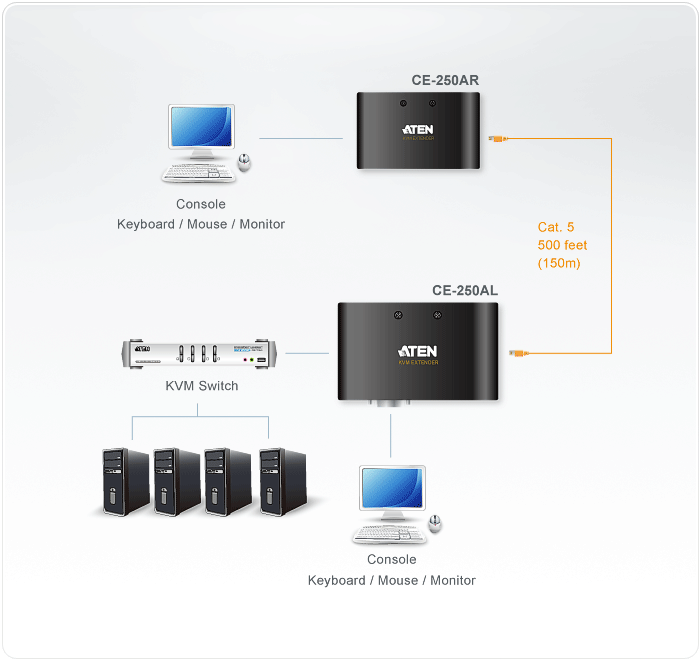

    连线图:

    技术规格:

    功能 CE250AL CE250AR
    控制端选择 1 x 前板按钮
    连接接口 控制端 键盘 1 x 6-pin Mini-DIN 母头(紫)
    显示器 1 x HDB-15 母头 (蓝)
    鼠标 1 x 6-pin Mini-DIN 母头(绿)
    电脑端 1 x SPHD-15 母头
    电源 1 x DC 插孔
    本地/远程设备连结 1 x RJ-45
    LED指示灯 本地 1 (绿)
    远程 1 (绿)
    电源 1 (绿)
    连线 1 (绿)
    模拟方式 键盘/鼠标 PS/2
    视频分辨率 1280 x 1024 @ 60Hz (150 M) DDC; DDC2; DDC2B
    耗电量 DC 5.0V;1.25W (最大值)
    操作环境 操作温度 0–50°C
    储存温度 -20–60°C
    湿度 0~80% RH ,非凝结
    机体属性 外壳材质 金属
    重量 0.3 Kg 0.32 kg
    尺寸(长 x 宽 x 高) 12.50 x 8.15 x 2.50 cm

  • PS/2 VGA Cat 5 KVM Extender (1280 x 1024@150m)
    CE250A
    The CE250A KVM Extender is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place - away from dust, and harsh environmental influences.
    A key feature of the CE250A is built-in 8KV ESD protection and 2KV surge protection. It also features a custom ASIC that ensures the utmost in reliability and compatibility. It senses the distance to the computer and automatically adjusts the gain to compensate.
    The CE250A KVM Extender provides the optimum means to access the remote computer, since it uses compact, inexpensive Cat 5e cable for a neater, more convenient, more reliable data transfer connection.
    ROHS Weee
    Share   Add to Compare
    Package Contents
    1x CE250AL KVM Extender (Local Unit)
    1x CE250AR KVM Extender (Remote Unit)
    1x Custom KVM Cable (1.8 m)
    1x Power Adapter
    1x Mounting Kit
    1x User Instructions
    1x Grounding Information Card
     Features
     Diagram
     Specifications
     Applications
     Support and Download
    Cat 5e cable to connect the Local and Remote Units - up to 150 m apart
    Dual console operation - control your system from both the local and remote PS/2 keyboard, mouse and monitor consoles
    Pushbutton selection of the active console
    High resolution video -up to 1280 x 1024 @ 60 Hz
    Supports Wide Screen formats *
    Supports VGA, SVGA, and Multisync monitors - ocal monitor supports DDC; DDC2; DDC2B
    Supports Microsoft Intellimouse and the scrolling wheel on most mice
    Automatic gain control - automatically adjusts signal strength to compensate for distance
    Built-in 8KV ESD protection and 2KV surge protection
    Local unit takes its power from the computer - external power is only required when the power from the local computer/computers in the KVM installation is insufficient
    Rack Mountable
    Multiplatform support: OS Support:Windows 2000/XP/Vista and Linux.

    * The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.
