CS682 ATEN 宏正 2端口USB 2.0 DVI多电脑切换器 有外接切换按钮
编号:CS682
品牌:ATEN   [查询该品牌全部商品]
单位:个
积分:0
重量:550 克
规格:
型号:
CS682提供DVI功能、USB 2.0接口设备分享、及2.1重低音立体环绕音效, CS682带领Petite系列KVM产品在技术上又向前迈进了一大步。此款新产品配备外接式切换按键,使用者可以将CS682主装置放在距离较远的方便位置,并直接从桌面通过切换按键执行连接端口的切换。

CS682亦支持Video Dynasync™显示器动态显示技术,其可储存控制端显示器的延伸显示辨识码(Extended Display Identification Data, EDID),以保持最佳显示器显示分辨率。此外,除了热键切换,CS682提供最新的鼠标连接端口切换功能,只要轻按两下USB鼠标上的滚轮,便可切换连接端口。CS682更具备电源开启侦测功能,若其中一台电脑电源关闭,CS682会自动切换至下一台电源开启的电脑。

CS682整合了DVI功能、方便的USB 2.0接口设备分享、以及操作简易的特性,为使用者提供桌上多媒体应用的创新技术。
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (3822) | 评论 (0) | 评分(0)
商品介绍
详细参数

  中石油管道设计公司(CPE),桌面虚拟

化项目 一次性采购 400台 CS682 ,灵活切

换业务系统与办公系统。






2端口USB 2.0 DVI多电脑切换器

CS682

CS682提供DVI功能、USB 2.0接口设备分享、及2.1重低音立体环绕音效, CS682带领Petite系列KVM产品在技术上又向前迈进了一大步。此款新产品配备外接式切换按键,使用者可以将CS682主装置放在距离较远的方便位置,并直接从桌面通过切换按键执行连接端口的切换。

CS682亦支持Video Dynasync™显示器动态显示技术,其可储存控制端显示器的延伸显示辨识码(Extended Display Identification Data, EDID),以保持最佳显示器显示分辨率。此外,除了热键切换,CS682提供最新的鼠标连接端口切换功能,只要轻按两下USB鼠标上的滚轮,便可切换连接端口。CS682更具备电源开启侦测功能,若其中一台电脑电源关闭,CS682会自动切换至下一台电源开启的电脑。

CS682整合了DVI功能、方便的USB 2.0接口设备分享、以及操作简易的特性,为使用者提供桌上多媒体应用的创新技术。

一组配备DVI显示器的控制端管理两台USB电脑



功能特点:

  • 完全兼容于DVI-Digital规格
  • USB 2.0鼠标端口可用以连接USB Hub分享USB接口设备*
  • 通过外接式切换按键、热键、及鼠标选择电脑
  • 支持音效 - 2.1重低音立体环绕音效
  • 支持多平台 - Windows, Linux, Mac and Sun
  • 设计精巧,内建多合一连接线(2 x 1.2m)
  • KVM/音讯独立切换–使用者在两台电脑之间进行切换时,可选择同步或异步切换扬声器及麦克风的音源,提升系统操作的方便性与弹性
  • 视频分辨率 - 1920 x 1200
  • 兼容于LCD宽显示器
  • 显示器动态同步显示(Video DynaSync™)技术 - ATEN独家技术能避免开机会产生的问题,并在切换连接端口时保持最佳显示器显示分辨率
  • 电源开启侦测 - 若其中一台电脑电源关闭,CS682会自动切换至下一台电源开启的电脑
  • 支持多媒体键盘
  • 支持无线键盘与鼠标
  • 控制端鼠标仿真/by pass功能支持大多数鼠标驱动程序与多功能鼠标
  • 支持与仿真Mac/Sun键盘**
  • 相容于HDCP
  • 无需电源
  • 支持固件更新

    附注:* 需外接额外电源
    ** • PC键盘组合可仿真Mac/Sun键盘
    • Mac/Sun键盘仅能与Mac/Sun电脑搭配使用

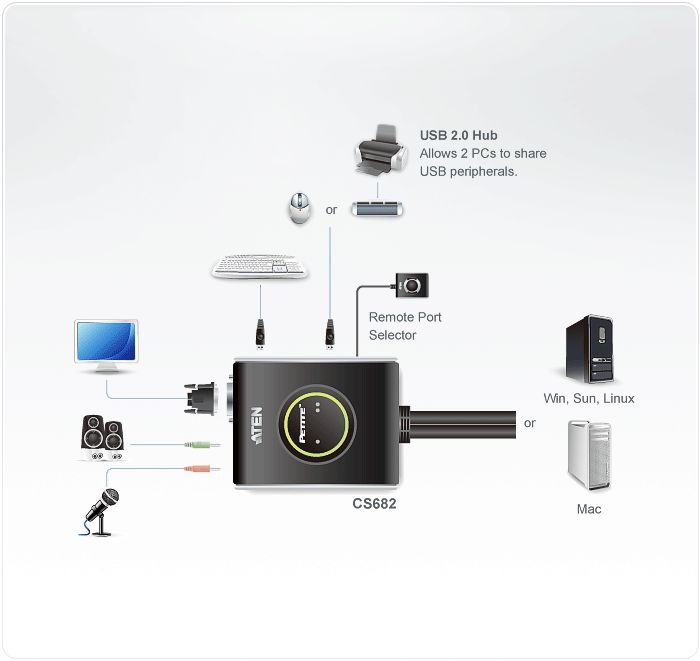

    连线图:

    技术规格:

    电脑连接数 2
    电脑切换选择 外接式切换按键,鼠标,热键
    连接接口 控制端 键盘 1 x USB Type A 母头 (银)
    显示器 1 x DVI-D 母头 (白)
    鼠标 1 x USB Type A 母头 (银)
    扬声器 1 x Mini Stereo Jack 母头 (绿)
    麦克风 1 x Mini Stereo Jack 母头 (粉红)
    电脑端 键盘 2 x USB Type A 公头 (紫)
    显示器 2 x DVI-D 公头 (黑)
    鼠标 2 x USB Type A 公头 (黑)
    扬声器 2 x Mini Stereo Jack 母头 (绿)
    麦克风 2 x Mini Stereo Jack 母头 (粉红)
    外接式切换按键 1 x Mini Stereo Jack
    LED指示灯 电脑 2 (绿)
    外接式切换按键 2 (绿)
    线材长度 电脑端 2 x 1.2 m
    外接式切换按键 1.8 m
    模拟方式 键盘 / 鼠标 USB
    视频分辨率 1920 x 1200
    扫瞄区间 3, 5, 10, 20 秒 (预设为5秒)
    耗电量 5V, 3.05W
    作业环境 操作温度 0 - 50°C
    储存温度 -20 - 60°C
    湿度 0 - 80% RH, 无凝结
    机体属性 外壳 塑料
    重量 0.50 kg
    尺寸
    (长 x 宽 x 高)
    11.10 x 7.80 x 2.50 kg




  • 2-Port USB DVI/Audio Cable KVM Switch
    CS682
    The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location.
    Furthermore, the CS682 features enhanced Video DynaSync™ technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. Also, in addition to new hotkeys, the CS682 offers the latest mouse port-switching function - simply double-click on the scroll wheel of a USB mouse to change ports. Finally, the CS682's new Power on detection feature means that if one of the computers is powered off, switch will automatically switch to the other powered-on computer.
    Featuring an unbeatable combination of DVI functionality, USB 2.0 peripheral sharing convenience, and enhanced user-friendly operations, the CS682 allows users to keep up with the latest innovations in desktop multimedia applications.
    ROHS Weee
    Share   Add to Compare
    Package Contents
    1x CS682 2-Port USB 2.0 DVI KVM Switch
    1x Remote Port Selector
    1x User Instructions
     Awards won by this product
     Features
     Diagram
     Specifications
     Applications
     Support and Download
    One DVI video console controls two USB computers
    Fully DVI-Digital specification compliant
    USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
    Computer selection via remote port selector, hotkeys, and USB mouse
    Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
    Multiplatform support - Windows, Linux, Mac and Sun
    Compact design, built-in all-in-on cables (2 x 1.2 m)
    Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
    Superior video quality - up to 1920 x 1200
    Compatible with widescreen LCD monitors
    Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
    Power on detection - if either of the computers is powered off, the CS682 will automatically switch to the other computer
    Supports multimedia keyboards
    Supports wireless keyboards and mice
    Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
    Mac/Sun keyboard support and emulation**
    HDCP Compliant
    Non-Powered
    Firmware upgradable

    * This may require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.
    ** • PC keyboard combinations emulate Mac/Sun keyboards.
         • Mac/Sun keyboards work only with their own computers.
