商品详情
ATEN 宏正 CV211 笔记本作为服务器的屏幕 kvm 适配器
编号:cv211
品牌:ATEN   [查询该品牌全部商品]
单位:个
积分:0
重量:125 克
规格:
型号:
IT维修的全功能设计:CV211设备能够通过一根USB2.0和VGA线缆开启双向文件传输、热键、宏、视频录制和截屏功能;无需在笔记本电脑和服务器之间连接额外的存储设备。无需携带维修设备,CV211设备不仅提供便利,而且简化步骤、减少在任何环境中设置和维修的时间
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (3363) | 评论 (0) | 评分(0)
商品介绍
详细参数


全球信息连接管理方案领导厂商-宏正自动科技(ATEN International,6277)今日发布了一款世界上最小巧轻便的笔记本电脑USB端适配器-ATEN宏正CV211。CV211可直接将笔记本电脑连接至任何服务器,允许您及时访问来执行数据维护和本地操作,从而快速排除故障、更新、服务和维修。在移动时代,该设备能够大大节省IT工程师和管理人员的时间;特别是在没有或不允许访问因特网的情况下。



ATEN宏正CV211产品的特点:

• 世界最小巧的便携式笔记本电脑USB端适配器:CV211设备的体积和重量远远小于同类其他产品。CV211设备的压缩体积为70.5x53.69x18.0 mm3(无后夹)且重量仅为125克,使其在任何工作环境下便于携带和使用。独特的后夹设计有助于在连接到服务器时进行线缆管理,使所有设备保持安全和整洁。
• IT维修的全功能设计:CV211设备能够通过一根USB2.0和VGA线缆开启双向文件传输、热键、宏、视频录制和截屏功能;无需在笔记本电脑和服务器之间连接额外的存储设备。无需携带维修设备,CV211设备不仅提供便利,而且简化步骤、减少在任何环境中设置和维修的时间。
• 实现笔记本电脑的即插即用:CV211无需安装软件且支持多平台环境:Windows和Linux。此外,CV211还是一款USB供电设备,所以无需电源适配器且不受限于不同国家的电源插座和电压范围。只需插入您的笔记本电脑,CV211就可以直接通过桌面访问服务器了。

ATEN宏正的CV211解决方案给IT人员带来了极大的便利。人们经常使用KVM over IP产品来修复IT设备,但是当因特网访问在恶劣环境(如生产线或蜂窝站点)中受限时,IT人员必须将许多工具携带到现场或者将整个设备带回以进行维修,而这整个过程耽误工作又浪费时间。如果使用ATEN宏正CV211设备,IT人员只需一台笔记本电脑就可以完成任何维修工作。ATEN宏正集团总裁Kevin Chen表示:“ 如今,即使在没有互联网接入的环境中,服务器的维修和操作也是容易且无忧的


笔记本转控制端转换器 新品
CV211

“弹指间,将笔记本电脑变身为移动控制器!”无需安装软件,CV211 - USB笔记本转控制端转换器 - 即可直接连接笔记本与电脑,简单快速地访问远程电脑。通过USB2.0与VGA线缆,拥有轻薄外观的CV211,可提供用户高效率的双向档案传输、热键宏、影像录制以及画面截图等功能。

用户可通过CV211直观且图像化的用户界面(GUI)、更简易的操作步骤等创新虚拟媒体功能,进行档案管理相关应用、系统修复、软件安装以及系统诊断测试等功能。用户控制窗口也可依据远程电脑桌面的屏幕分辨率和大小自动调整至合适的尺寸。用户无需拖动电脑屏幕,即可完整浏览远程服务器的电脑画面。
此外,携带或使用CV211时,CV211独创的背夹设计能帮助用户整理繁杂线缆,提供用户更好的使用体验与提升可携性。 CV211绝对是IT专业人员用来排除故障维修问题必备的可携式专业工具。

  • USB笔记本转控制端转换器,能直接连接笔记本电脑与远程电脑、进行远程访问控制
  • 本地与远程电脑间的双向档案传输
  • 支持模拟影像分辨率达-1920x1200@60Hz
  • 虚拟媒体可提供档案管理、系统修补、软件安装与诊断测试等功能
  • 通过影像录制和画面截图功能可保存远程电脑的操作记录, 以便将来作为训练和故障排除用
  • 鼠标动态同步显示功能(Mouse DynaSync™)– 可自动同步本地与远程的鼠标移动动作
  • 支持多国语系的屏幕键盘功能
  • 支持热键宏-定义针对目标电脑执行特定功能行为的热键, 藉此有效率且正确地完成工作
  • 工具列协助用户于远程视窗内,通过鼠标单一点击控制画面 轻松地操作所有功能
  • 桌面缩放- 用户可以通过尺寸或比例调整远程电脑桌面可视窗口的大小与分辨率
  • 支持热插拔
  • 随插即用- 无需安装额外的软件
  • 支持固件更新
  • 独特的背夹设计用于整理繁杂的线缆
电脑连接
直接1
接口
便携式电脑USB主控台(LUC)连接端口1 x 迷你USB 母头 (黑色)
KVM (电脑) 端口1 x USB Type A 公头 (黑色)
1 x VGA 公头 (蓝色)
LED
在线1 (蓝色)
环境
操作温度0 -40°C
储存温度- 20 - 60°C
湿度0 - 80% RH, 无凝结
机体属性
外壳塑料
重量0.13 kg ( 0.29 lb )
尺寸 (长 x 宽 x 高)7.05 x 5.37 x 3.01 cm
(2.78 x 2.11 x 1.19 in.)

Laptop USB Console Adapter
CV211
‘Turn your laptop into a mobile console in a few seconds.’ The CV211 Laptop USB Console Adapter provides a direct Laptop-to-Computer connection for fast and easy remote desktop access with no software to install. High efficiency in a compact design, the CV211 offers bi-directional file transfers, hotkey macros, video recording and screenshots through a USB 2.0 and VGA composite cable.
The innovative virtual media function provides file application, OS patching and software installations, as well as diagnostic testing through the CV211’s intuitive graphical user interface (GUI) which provides easy operation and fast remote access. The GUI console window can be adjusted to the exact size and resolution of the remote computer's desktop by re-sizing the pane automatically; or you can manually adjust the window size as you see fit. This allows you to view the server’s entire desktop without needing to use a scroll bar.

In addition, the unique cable clip design is utilized for easy tidying up of disorganized cables while the CV211 is being used and transported. The CV211 is recommended as a portable direct connect server access troubleshooting device for IT professionals.

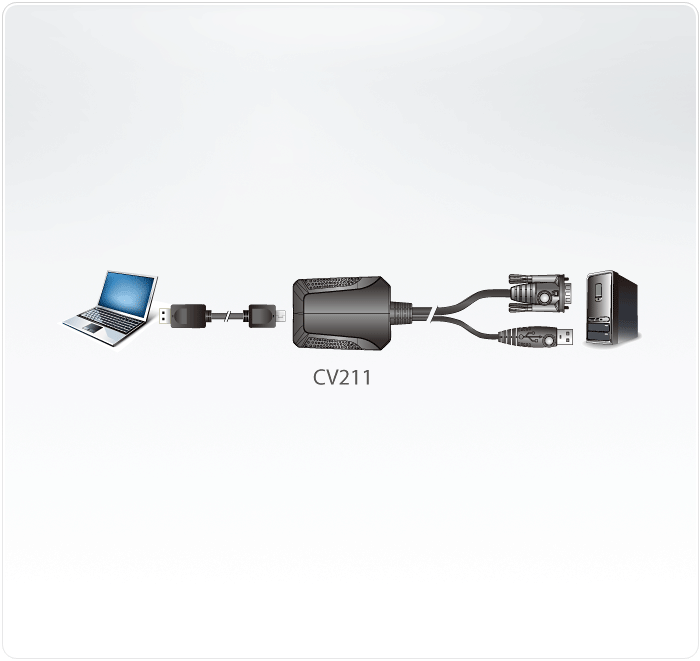

USB Console Adapter for direct Laptop-to-Computer remote access
Bi-directional file transfers between local and remote computer
Supports analogue video resolutions up to 1920 x 1200 @ 60 Hz
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Video recording and image capture feature saves a record of remote operations for future training and troubleshooting
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
On-screen keyboard with multi-language support
Supports hotkey macros – define keystrokes that execute specific actions on the target computer to complete tasks efficiently and accurately
Toolbar helps users easily operate all the functions from a single-click control panel within the remote view window
Desktop scaling – user can adjust the size/resolution of the Remote desktop window by size or ratio
Supports hot-plugging
Plug-and-Play – no software installation required
Firmware upgradable
Unique cable clip design to get cables under control

Package Contents

  • 1 x CV211 Laptop USB Console Adapter
  • 1 x USB Type A to USB Mini-B Cable
  • 1 x User Instructions


Computer Connections1
Connectors
Laptop USB Console (LUC) Port1 x Mini-USB Female (Black)
KVM (Computer) Ports1 x USB Type A Male (Black)
1 x VGA Male (Blue)
LEDs1 (Blue)
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-condensing
Physical Properties
HousingPlastic
Weight0.13 kg ( 0.29 lb )
Dimensions (L x W x H)7.05 x 5.37 x 3.01 cm
(2.78 x 2.11 x 1.19 in.)
