CL5816N ATEN 宏正 四合一帶16口PS/2+USB混接机架型LCD KCM,OSD(19"),双滑軌
编号:CL5816N
品牌:   [查询该品牌全部商品]
单位:个
积分:0
重量:15020 克
CL5816 Slideaway™ 双滑轨LCD KVM多电脑切换器是一套先进的控制方案,使用者可通过两组PS/2或USB KVM控制端存取多台服务器。CL5816后方面板提供一组额外的控制端连接端口,使用者可从另一组外接控制端管理LCD KVM多电脑切换器。
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (1988) | 评论 (0) | 评分(0)
商品介绍
详细参数

16端口双滑轨LCD KVM多电脑切换器

CL5816 Zoom In

CL5816 Slideaway™ 双滑轨LCD KVM多电脑切换器是一套先进的控制方案,使用者可通过两组PS/2或USB KVM控制端存取多台服务器。CL5816后方面板提供一组额外的控制端连接端口,使用者可从另一组外接控制端管理LCD KVM多电脑切换器。

CL5816的19吋LCD显示器与键盘/触控板可分别独立抽拉,为有效节省机房使用空间,当键盘/触控板不需使用时,可推回机架内,仅保留轻薄的LCD显示器,以方便管理人员便监看服务器的状态。此外,通过键盘上的机台与连结端口选择按键,使用者可快速地切换至任何一台服务器。当键盘收入机架内时,亦可使用位于显示器面板的连接端口上下按键切换至欲选择的服务器。

CL5816 Zoom In

CL5816支持配备PS/2或USB键盘与鼠标的服务器与USB接口的接口设备。单一控制端可管理高达16台服务器。通过菊链方式,可再串接多达31台KVM多电脑切换器,使用者便能从单一键盘、触控显示器、及鼠标控制端管理多达512台服务器。



功能特点:

  • 整合KVM控制端与19吋LCD液晶显示器于单一双滑轨机体内
  • 节省空间技术 - 两组控制端(单一总线)可管理16台服务器
  • 菊链串接另外31台设备* - 两组控制端(单一总线)可管理高达512台服务器
  • 双接口 - 支持配备PS/2或USB键盘及鼠标的服务器与控制端
  • 支持USB接口设备,可分享于连接到本地机台的服务器
  • LCD模块可展开至120度,以提供更舒适的检视角度
  • 控制端锁定功能 - 在不使用控制端时可将其安全锁定在原来位置
  • 跨平台支持 - Windows、Linux、Mac及Sun
  • 支持多媒体USB键盘 (PC、Mac及Sun)
  • PS/2及USB接口自动侦测
  • 键盘及鼠标信号仿真 (PS/2与USB) – 可确保多台服务器可顺利切换及同时开机,无论控制端是否切换到该服务器
  • 外接式控制端连接端口 - 可通过另一组外接式控制端 (显示器、PS/2或USB键盘、以及USB鼠标) 管理LCD KVM多电脑切换器所连接的服务器
  • *兼容的KVM多电脑切换器:ACS1208A, ACS1216A,CS1708A,CS1716A
  • 支持外接式USB鼠标
  • 高视频质量 - 支持分辨率高达1280 x 1024 @ 75Hz
  • 无需安装软件 - 可通过前端面板按键、键盘热键、及多国语言OSD显示器选单轻松选择服务器
  • 在菊式串接的架构下,可自动侦测装置机台位置并显示于前端面板的LED上,无需手动进行DIP设定
  • 当机台顺序改变时,自动重编连接端口号
  • 双层密码安全机制 - 唯有授权使用者才能浏览与控管服务器
  • LCD电源按钮设计可节省能源并延长显示器寿命
  • 支持1位管理员与4位使用者账号,并拥有各自的设定数据
  • 自动扫描模式可持续监控使用者所选择的服务器
  • 支持广播模式 - 可将键盘指令传送至系统架构下的所有服务器
  • 支持热插拔 - 不需关闭电源即可随时增加或移除服务器
  • 可通过热键与OSD开启/关闭警示音
  • 通过菊式串接线,同步为所串联的KVM多电脑切换器进行固件更新

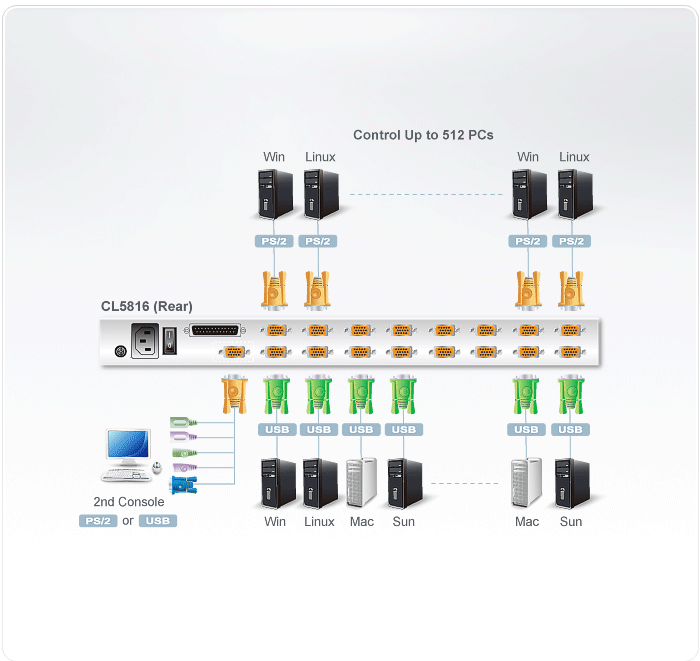

    连线图:

    技术规格:

    电脑连接数 直接连接数 16
    最大连接数 512 (菊链串接)
    连接端口选择 OSD显示器选单、热键、面板按键
    接口 外接控制端连接端口 1 x SPHD-18 公头 (黄)
    外接鼠标连接端口 1 x USB Type-A 母头 (白)
    电脑端连接端口 16 x SPHD-17/18 母头 (黄)
    菊式串接端口 1 x DB-25 公头 (黑)
    固件更新 1 x RJ-11 公头 (黑)
    电源 1 x 3针脚交流电源插座
    USB端口 1 x USB Type-A (母头)
    开关 重置 1 x 半嵌式按钮
    电源 1 x 滑动开关
    固件更新 1 x 按键
    LCD 调整 4 x 按键
    LCD 开/关 1 x LED 按键 (橘)
    连接端口选择 2 x 按键 (LCD); 16 x 按键 (键盘)
    机台选择 2 x 按键
    LED指示灯 上线 16(橘)
    已选择 16 (绿)
    机台编号 2 x 7节LED显示 (橘)
    电源 1 (深绿)
    Lock Num 1 (绿)
    Caps 1 (绿)
    Scroll 1 (绿)
    仿真功能 键盘/鼠标 PS/2, USB
    视频分辨率 1280 x 1024 @ 75 Hz; DDC2B
    扫描区间(OSD选择) 1–255秒
    输入额定值 100–240 V AC, 50/60 Hz, 1 A
    耗电量 120V, 31.6W ; 230V, 32.4W
    作业环境 操作温度 0–50°C
    储存温度 -20–60°C
    湿度 0–80% RH,无凝结
    机体属性 外壳 金属+塑料
    重量

    15.02 kg

    尺寸
    ( 长 x 宽 x 高 )
    68.04 x 48.00 x 4.40 cm

  • 16-Port PS/2-USB VGA Dual Rail LCD KVM Switch with Daisy-Chain Port and USB Peripheral Support
    CL5816
    The CL5816 Slideaway™ Dual Rail LCD KVM Switch is a control unit that allows access to multiple computers from two PS/2 or USB KVM consoles. An extra console port is provided on the rear panel to manage the LCD KVM switch from an optional external consoles.
    The CL5816 19" LED-backlit LCD monitor and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. Quickly and conveniently switch computer access with station and port selection pushbutton switches located on the keyboard module. Even when the keyboard module is in the retracted position you can still switch access with the Port Up/Port Down pushbuttons located on the monitor module.
    The CL5808 supports both PS/2 and USB keyboards and mice for the connected computers, and the CL5816 supports USB peripheral devices to be used with the attached computers. A single CL5816 can control up to 16 computers. As many as 31 additional compatible KVM switches can be daisy chained together, so that up to 512 computers can all be controlled from a single keyboard, monitor, and mouse console.

    CL5816N: 19" LCD

    ROHS Weee
    Share   Add to Compare
    Package Contents
    1x CL5816 KVM Switch with Standard Rack Mounting Kit
    2x Custom KVM Cables
    1x 5-in-1 Console Cable
    1x Firmware Upgrade Cable
    1x Power Cord
    1x User Instructions
     LCD_KVM_Products-edm_qt.html
     Features
     Diagram
     Specifications
     Applications
     Support and Download
    Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    Integrated KVM console with 19" LED-backlit LCD monitor in a Dual Rail housing
    Space saving technology - up to two consoles (one bus) control up to 16 computers
    Daisy-chain up to 31 additional units*– control up to 512 computers from two consoles (one bus)
    Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
    Supports USB peripherals for computers connected to the local station
    LCD module rotates up to 120 degrees for a more comfortable viewing angle
    Console Lock - enables the console drawer to remain securely locked away in position when not in use
    Multiplatform support - Windows, Linux, Mac, and Sun
    Supports multimedia USB keyboards for PC, Mac and Sun
    Auto PS/2 and USB interface detection
    Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
    Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
    *With compatible KVM Switches:ACS1208A, ACS1216A,CS1708A,CS1716A
    Supports external USB mouse
    Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
    No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
    Auto-senses station's position on daisy chained installations; no need for manual dip switch setting; front panel led indicates station's position
    Port names automatically reconfigured when station sequence is changed
    Two level password security - only authorized users can view and control computers
    LCD power button helps save energy and prolong display's life
    Supports one administrator and four user accounts with separate profiles
    Auto Scan mode enables continuous monitoring of user-selected computers
    Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
    Hot pluggable - add or remove computers without having to power down the switch
    Beeper on/off via hotkey and OSD
    Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable
    Keyboard Language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
