CL5716M ATEN 宏正 四合一帶16口PS/2+USB混接机架型LCD KVM,OSD (17")
编号:CL5716M
品牌:   [查询该品牌全部商品]
单位:个
积分:0
重量:14000 克
CL5716 Slideaway™ LCD KVM抽拉式多电脑切换器是一套先进的控制方案,其可通过一组PS/2或USB KVM控制端(键盘、显示器及鼠标)存取多台服务器。一台CL5716可分别直接管理16台服务器;通过菊链方式另外再串接31台KVM多电脑切换器,即可从单一控制端管理多达512台服务器。
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (3170) | 评论 (0) | 评分(0)
商品介绍
详细参数

16端口Slideaway™ LCD KVM抽拉式多电脑切换器

CL5716 Zoom In

CL5716 Slideaway™ LCD KVM抽拉式多电脑切换器是一套先进的控制方案,其可通过一组PS/2或USB KVM控制端(键盘、显示器及鼠标)存取多台服务器。一台CL5716可分别直接管理16台服务器;通过菊链方式另外再串接31台KVM多电脑切换器,即可从单一控制端管理多达512台服务器。

CL5716 Zoom In

CL5716将17英寸和19英寸LCD液晶显示器、键盘及鼠标触控板整合于一个1U的抽拉式控制端模块内,可大幅节省机架空间。



功能特点:

  • 整合具备17寸和19寸LCD液晶显示器的KVM控制端于单一抽拉式机身内
  • 提供两种款式可供选择–内建与无内建指纹辨识系统**
  • 节省空间–两组控制端(单一总线)可管理16台服务器
  • 菊式串接另外31台设备 - 单一控制端可管理高达512台服务器(兼容的KVM多电脑切换器包括ACS1208A、ACS1216A、CS1708A、CS1716A)
  • 双接口–支持配备PS/2或USB键盘及鼠标的服务器与控制端
  • LCD模块上的USB连接端口可让每一台电脑访问USB接口设备*
  • LCD模块可展开至115度,以提供舒适的检视角度
  • 跨平台支持 - Windows, Linux, Mac, and Sun
  • 支持多媒体USB键盘 (PC、Mac及Sun)
  • PS/2及USB接口自动侦测
  • USB与PS/2键盘及鼠标信号仿真–无论控制端是否切换到该服务器均可确保开机无误
  • 支持外接式USB鼠标
  • 高视频分辨率-高达1280 x 1024 @75Hz
  • 无需安装软件 - 可通过前端面板按键、键盘热键、及多国语言OSD显示器选单轻松选择服务器
  • 在菊式串接的架构下,可自动侦测设备机台位置并显示于前端面板的LED上,无需手动进行DIP设定
  • 当机台顺序改变时,自动重编连接端口号
  • 双层密码安全机制 - 唯有授权用户才能浏览与控管服务器
  • 支持1位管理员与4位用户账号,其拥有各自的设定数据
  • 自动扫描模式可持续监控用户所选择的服务器
  • 支持广播模式–可将键盘指令传送至系统架构下的所有服务器
  • 可通过热键与OSD开启/关闭警示音
  • 通过菊式串接线,同步为所有串接的KVM多电脑切换器进行固件更新

    * USB外围设备必须通过USB线缆才能管理,PS/2线缆无法支持

    **指纹辨识读取器可做为登入KVM切换器的另一种方式。每位用户及管理员均可登录1至4个指纹数据,只要通过其中任一指进行辨识即可登入


    机架安装套件机架深度
    2X-010G (长/选配)17寸68 - 105 cm
    19寸70 - 105 cm
    短(标准)17寸42 - 82 cm
    19寸52 - 85 cm
    简易型机架安裝套件机架深度
    2X-012G (长/选配)68 - 105 cm
    2X-011G (短/选配)17寸52 - 70 cm
    19寸 57 - 70 cm


    一人上架安装套件简介

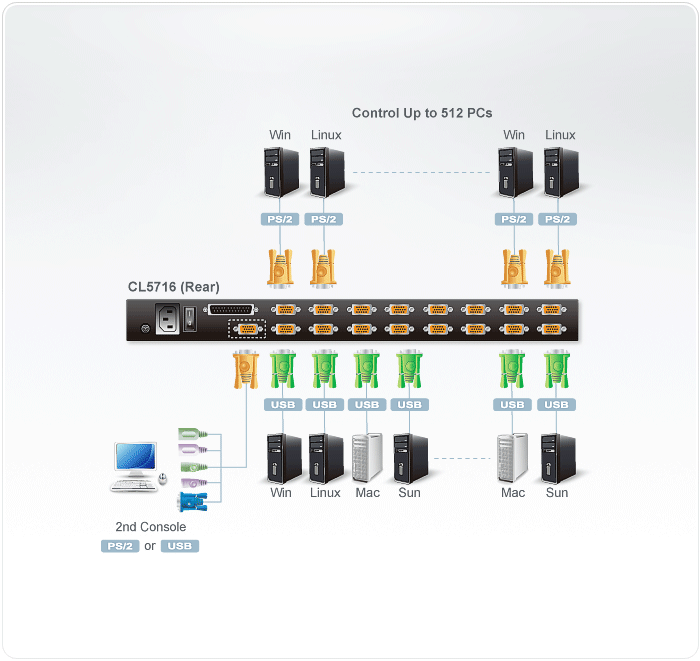

  • 连线图:

    技术规格:

    电脑连接数 直接连接数 16
    最大连接数 512 (菊式串联)
    连接端口选择 OSD显示器选单、热键、面板按键
    接口 外接控制端连接端口 1 x SPHD-18 公头 (黄)
    外接鼠标连接端口 1 x USB Type-A 母头 (白)
    电脑端连接端口 16 x SPHD-15/17 母头 (黄)
    菊式串联端口 1 x DB-25 公头 (黑)
    固件更新 1 x RJ-11 母头
    电源 1 x 3针脚交流电源插座
    USB 端口 1 x USB Type-A 母头 (白)
    开关 重置 1 x 半嵌式按钮
    电源 1 x 翘板开关
    固件更新 1 x 滑动开关
    LCD 调整 4 x 按键
    LCD 开/关 1 x LED 按键 (橘)
    连接端口选择 2 x 按键
    机台选择 2 x 按键
    LED 指示灯 上线 16 (橘)
    连接端口号 2 x 7 节 LED 显示 (橘)
    机台编号 2 x 7 节 LED 显示 (橘)
    电源 1 (深绿)
    Lock Num Lock 1 (绿)
    Caps Lock 1 (绿)
    Scroll Lock 1 (绿)
    仿真功能 键盘 / 鼠标 PS/2, USB
    视频分辨率 1280 x 1024 @ 75 Hz; DDC2B
    扫描区间 (OSD 选择) 1–255 秒
    输入额定值 100–240 Vac, 50/60 Hz, 1 A
    耗电量 17英寸LCD 120V,24.9W/230V,25.8W
    19英寸LCD 120V,26W/230V,26.8W
    作业环境 操作温度 0–40°C
    储存温度 -20–60°C
    湿度 0–80% RH, 无凝结
    机体属性 外壳 金属 + 塑料
    重量 17英寸LCD

    14.00 kg

    19英寸LCD 14.65 kg
    尺寸
    ( 长 x 宽 x 高)
    63.40 x 48.00 x 4.40 cm

  • 16-Port PS/2-USB VGA LCD KVM Switch with Daisy-Chain Port and USB Peripheral Support
    CL5716
    The CL5716 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.
    The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

    CL5716M: 17" LCD
    CL5716N: 19" LCD
    CL5716FM: 17" LCD with fingerprint reader


    ROHS Weee
    Share   Add to Compare
    Package Contents
    1x CL5716 LCD KVM Switch with standard Rack Mount Kit
    2x Custom KVM Cable Sets
    1x 5-in-1 USB / PS/2 Console Cable
    1x Firmware Upgrade Cable
    1x Power Cord (AC Power Models)
    1x User Instructions






     Awards won by this product
     LCD_KVM_Products-edm_qt.html
     Features
     Diagram
     Specifications
     Applications
     Support and Download
    Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
    Available with or without Fingerprint Identification Reader**
    Space saving technology - up to two consoles (one bus) control up to 16 computers
    Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A)
    Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
    LCD module USB port allows each computer to access USB peripherals*
    LCD module rotates up to 115 degrees for a more comfortable viewing angle
    Multiplatform support – Windows, Linux, Mac, and Sun
    Supports multimedia USB keyboards for PC, Mac and Sun
    Auto PS/2 and USB interface detection
    Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
    Supports external USB mouse
    Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
    No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
    Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
    Port names automatically reconfigured when station sequence is changed
    Two level password security - only authorized users can view and control computers
    Supports one administrator and four user accounts with separate profiles
    Auto Scan mode enables continuous monitoring of user-selected computers
    Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
    Hot pluggable - add or remove computers without having to power down the switch
    Beeper on/off via hotkey and OSD
    Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
    Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

    * The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
