CS1762A ATEN 宏正 2端口 USB2.0, 單通道 DVI KVMP™切换器,SUN,MAC(1.8米x2)
编号:CS1762A
品牌:ATEN   [查询该品牌全部商品]
单位:个
积分:0
重量:730 克
规格:
型号:
CubiQ™ CS1762A USB DVI KVMP™多电脑切换器的推出,为KVM(键盘、显示器、鼠标)产品功能创造了革命性的新方向。CS1762A除了同时整合2端口USB 2.0Hub与2端口KVM多电脑切换器之外,并提供支持数字显示器的DVI接口。CS1762A具备ATEN创新的Video Dynasync™显示器动态同步显示技术,可保持最佳显示器显示分辨率。该产品同时支持电源开启侦测功能,若其中一台电脑电源关闭,CS1762A会自动切换至下一台电源开启的电脑。
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (1439) | 评论 (0) | 评分(0)
商品介绍
详细参数






USB 2.0 DVI KVMP™多电脑切换器

CS1762A

CubiQ™ CS1762A USB DVI KVMP™多电脑切换器的推出,为KVM(键盘、显示器、鼠标)产品功能创造了革命性的新方向。CS1762A除了同时整合2端口USB 2.0Hub与2端口KVM多电脑切换器之外,并提供支持数字显示器的DVI接口。CS1762A具备ATEN创新的Video Dynasync™显示器动态同步显示技术,可保持最佳显示器显示分辨率。该产品同时支持电源开启侦测功能,若其中一台电脑电源关闭,CS1762A会自动切换至下一台电源开启的电脑。

CS1762A

在KVM多电脑切换器功能面,使用者可通过单一USB键盘、USB鼠标及显示器控制端操作2台电脑。而在USB 2.0Hub方面,每台电脑可依次存取任何一台连接至Hub的接口设备。



功能特点:

  • 一组USB控制端可管理2台DVI电脑及2台USB 2.0接口设备
  • 内建2端口USB 2.0 Hub
  • 完全兼容于USB 2.0规格
  • 可通过前端面板按键、热键及鼠标切换电脑
  • 支持音频 - 具备重低频响应能力,可支持2.1立体环绕声道系统
  • 支持跨平台 - Windows、Linux、Mac及Sun
  • 支持宽屏分辨率
  • 高视频分辨率 - 1920 × 1200
  • 支持电脑、USB接口设备、及音频功能独立切换
  • 支持DVI-Digital与DVI-Analog显示器–完全兼容于DVI规格
  • 兼容于HDCP
  • 显示器动态同步显示技术(Video DynaSync™)–ATEN独家技术能避免开机会产生的问题,并在切换连接端口时保持最佳显示器显示分辨率
  • 电源开启侦测 - 若其中一台电脑电源关闭,会自动切换至另一台电源开启的电脑
  • 控制端鼠标端口仿真/ bypass功能支持大多数鼠标驱动程序与多功能鼠标
  • 完整的键盘信号仿真,确保开机零失误
  • 支持及模拟Sun/Mac键*
  • 支持不同键盘语言 - 包含英文、日文及法文键盘
  • 自动扫描功能可监控所有电脑操作
  • 支持固件更新

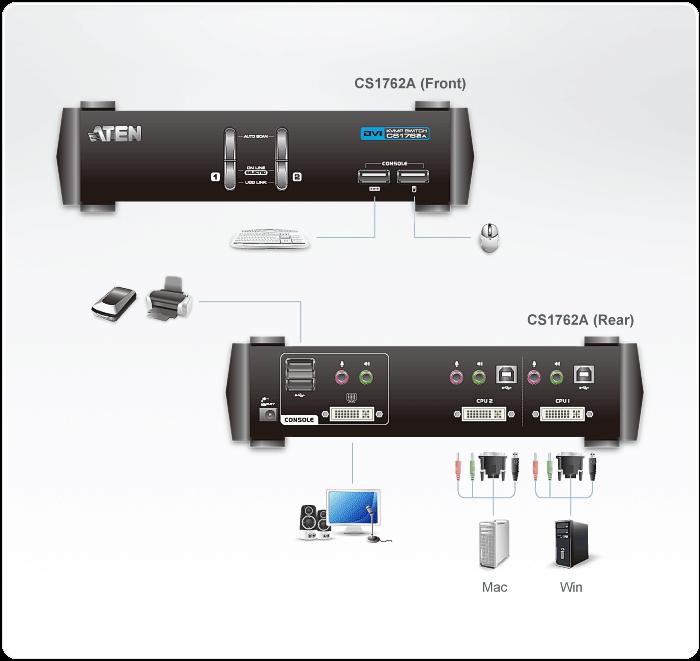

    连线图:

    技术规格:

    电脑连接数 2
    连接端口选择 前端面板按键;热键;鼠标
    接口 控制端 键盘 1 x USB Type A 母头
    (白;前端面板)
    显示器 1 x DVI-I 母头(白)
    鼠标 1 x USB Type A 母头
    (白;前端面板)
    扬声器 1 x Mini Stereo Jack
    母头(绿;背板)
    麦克风 1 x Mini Stereo Jack
    母头(粉红;背板)
    电脑端 键盘/鼠标 2 x USB Type B 母头(白)
    显示器 2 x DVI-I 母头(白)
    扬声器 2 x Mini Stereo Jack
    母头(绿)
    麦克风 2 x Mini Stereo Jack
    母头(粉红)
    电源 1 x DC 电源插座
    USB Hub 2 x USB Type A 母头(黑; 背板)
    开关 选泽 2 x 按键
    LED指示灯 上线/已选泽 2 (橘)
    USB联机 2 (绿)
    仿真功能 键盘/鼠标 USB
    视频分辨率 1920 x 1200
    扫描区间 1–99 秒 (预设为5秒)
    耗电量 DC5.3V, 9.0W
    作业环境 操作温度 0 - 50°C
    储存温度 -20 - 60°C
    湿度 0-80% RH,无凝结
    机体属性 外壳 金属
    重量 0.73 kg
    尺寸(长x宽x高) 21.00 x 8.70 x 5.50 cm


  • 2-Port USB DVI KVMP™ Switch

    CS1762A

    The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

    In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.

    As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.

    ROHS Weee

    Share   Add to Compare

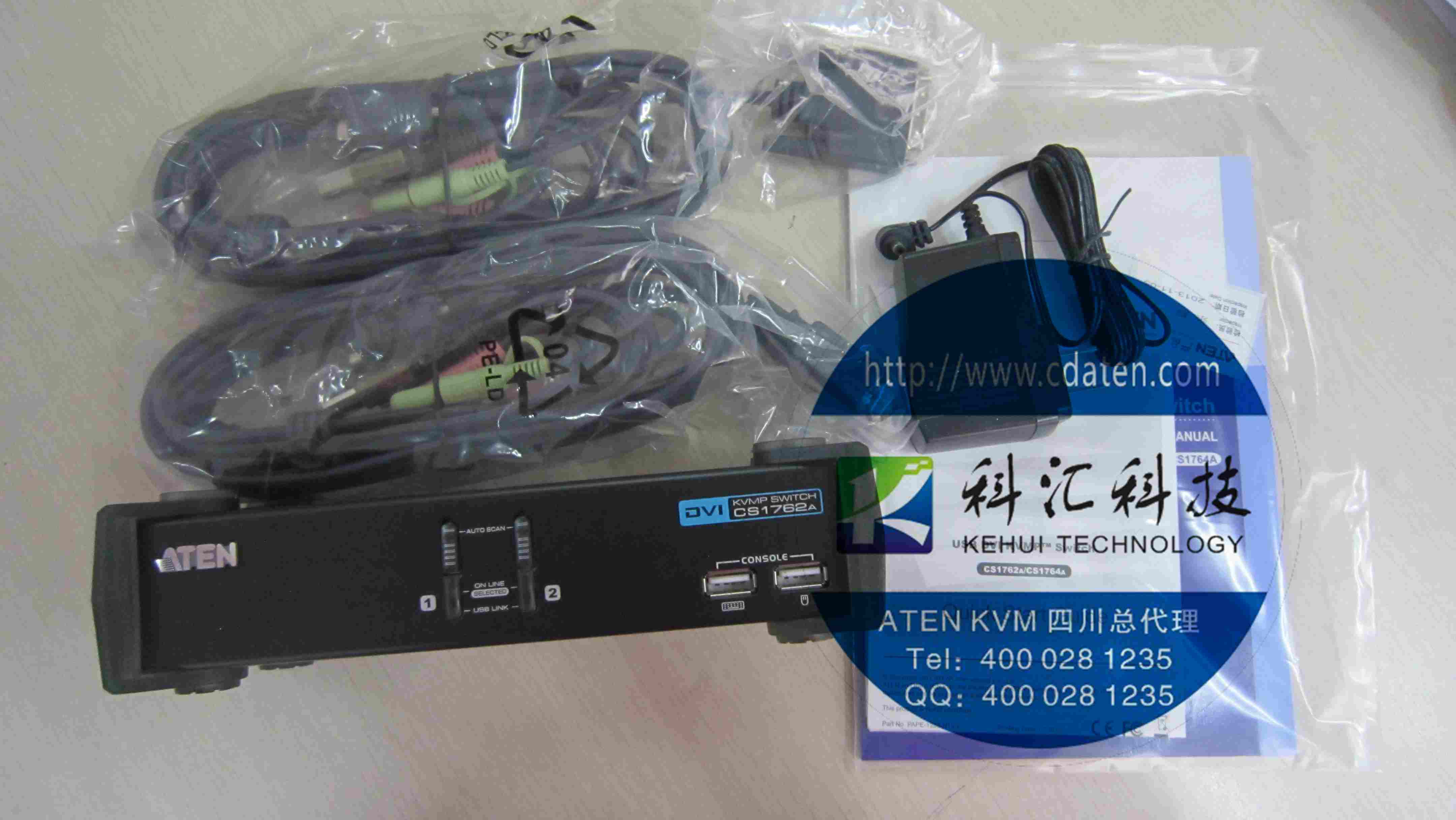

    Package Contents

    1x CS1762A USB 2.0 DVI KVMP™ Switch

    2x Custom KVM Cable Sets (DVI-D)

    1x Power Adapter

    1x User Manual

    1x Quick Start Guide

    Your cart ×

    TOTALUSD$0.00

    Shipping and discount codes are added at checkout.

    Checkout

     Buy Now !

     Features

     Diagram

     Specification

     Applications

     Support and Download

    One USB console controls two DVI computers and two additional USB 2.0 devices

    2-port USB 2.0 hub built in

    Fully compliant with the USB 2.0 specification

    Computer selection via front panel pushbuttons, hotkeys, and mouse

    Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems

    Multiplatform support – Windows, Linux, Mac, and Sun

    Supports widescreen resolutions

    Superior video quality – 1920 x 1200

    Independent switching of KVM, USB, and Audio focus

    DVI digital and analog monitor support – fully compliant with the DVI specifi cations

    HDCP compatible

    Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems

    Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer

    Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice

    Complete keyboard emulation for error-free booting

    Mac/Sun keyboard support and emulation*

    Multilingual keyboard mapping – supports English, Japanese, and French keyboards

    Auto Scan Mode for monitoring all computers

    Firmware upgradable


    * 1. PC keyboard combinations emulate Mac/Sun keyboards

    2. Mac/Sun keyboards only work with their own computer
