CS1742C ATEN 宏正 2端口 VGA USB KVMP™切换器,支持双屏主机,SUN,MAC(1.8米x2)
编号:CS1742C
品牌:ATEN   [查询该品牌全部商品]
单位:个
积分:0
重量:820 克
规格:分辨率 可达2048x1536。
型号:
CS1742整合视频双输出与USB KVMP™切换器功能,让支持双屏幕显示的计算机,可以通过一组USB键盘及鼠标,与两组VGA/ SVGA/Multisync 显示器搭配控制。此外,CS-1742提供2组USB连接端口功能,可让每台服务器主机分享使用连接到这个HUB的任何一个USB周边设备。
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (1417) | 评论 (0) | 评分(0)
商品介绍
详细参数

2端口Dual-View KVMP™多电脑切换器



CS1742整合视频双输出与USB KVMP™切换器功能,让支持双屏幕显示的计算机,可以通过一组USB键盘及鼠标,与两组VGA/ SVGA/Multisync 显示器搭配控制。此外,CS-1742提供2组USB连接端口功能,可让每台服务器主机分享使用连接到这个HUB的任何一个USB周边设备。

功能特点:

  • 支持双屏幕输出功能。
  • 前后端各内置1组USB连接端口。
  • 支持双向切换功能,可弹性地让不同平台交换与互通,允许PC、外围装置、音效功能等独立切换,无需受限KVM切换器的切换锁定
  • 可透过热键开启或关闭警示音。
  • 分辨率最高可达2048x1536。
  • 程序化的热键操作。
  • 具备固件升级功能。
  • 可支持操作系统:Windows 2000、Windows XP、Windows Vista、LINUX、Mac、Sun 及 FreeBSD。
  • 可支持及模拟SUN/Mac键盘功能键

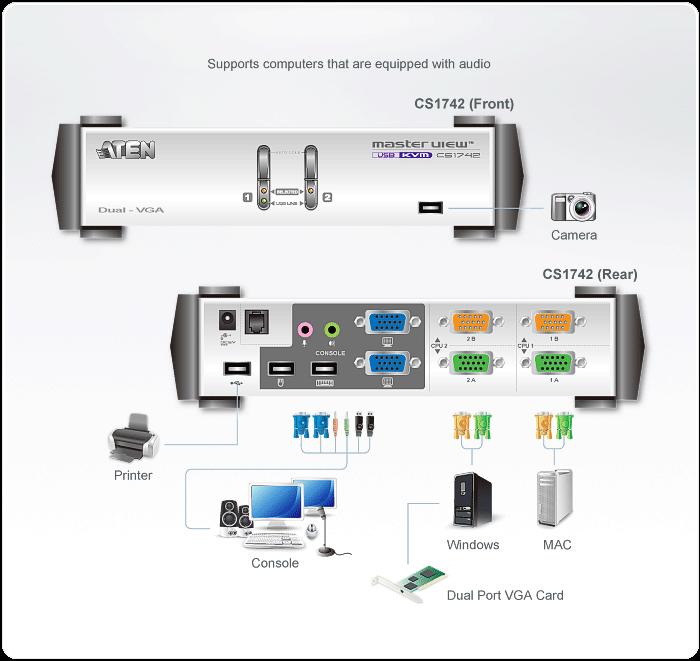

    连线图:

    技术规格:

    连接电脑数 2
    电脑切换选择 热键、按键
    USB埠选择 热键
    连接接口 控制端 键盘 1 x USB Type A 母头 (白)
    屏幕 2 X HDB-15 母头 (蓝)
    鼠标 1 x USB Type A 母头 (白)
    音效 1 x 耳机接头 母头 (绿)
    1 x 麦克风接头 母头 (粉红)
    计算机 音讯与屏幕 1 2 x SPHD-15 公头 (黄)
    USB与屏幕2 2 x SPHD-15 母头 (绿)
    USB Hub 2 x USB Type A 母头 (白)
    固件更新 1 x RJ11 接头 (黑)
    电源变压器 1 x DC5V 接头 (备用)
    LED 指示灯 联机/已选择 2 (橘)
    USB 连接指示灯 2 (绿)
    模拟方式 键盘 / 鼠标 USB
    视讯分辨率 可至2048 x 1536
    耗电量 DC5V, 1.25W
    操作温度 0˚C~50˚C
    储存温度 -20˚C~60˚C
    扫描时间 1~99 Sec (预设为5 Sec)
    外壳 金属
    重量 0.82 Kg
    尺寸 ( 长 x 宽 x 高 ) 21.00 x 8.70 x 5.50 cm


  • 2-Port USB VGA Dual Display KVMP™ Switch
  • CS1742
  • CS1742 2 Port KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1742 provides 2 USB ports, allowing each server to share any USB peripheral device that is connected to this HUB.
  • ROHS Weee
  • Share   Add to Compare
  • Package Contents
  • 1x 2-Port USB Dual-View KVMP™ Switch
  • 2x KVM Cables (Audio/Video)
  • 2x KVM Cables (USB/Video)
  • 1x Firmware Upgrade Cable
  • 1x User Instructions
  •  Awards won by this product
  •  Features
  •  Diagram
  •  Specification
  •  Applications
  •  Support and Download
  • Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
  • 2 port USB Hub built in
  • Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
  • With speaker and microphone support
  • Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
  • Buzzer On/Off via hotkey
  • Keyboard and mouse emulation for error free booting
  • Computer selection via front panel pushbuttons and hotkeys
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Firmware upgradeable
  • OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
  • SUN/Mac keyboard support and emulation*
  • *1.PC keyboard combinations emulate SUN/Mac keyboards.
  • *2.SUN/Mac keyboards only work with their own computers.
