文件名称:Secure KVM多电脑切换方案
下载分类:产品解决方案
浏览次数:1453 次
下载次数:41 次
上传时间:2012-12-30 12:29:41
更新时间:2012-12-30 14:23:18
简介:Secure KVM多电脑切换方案能针对政府/军方等极重视安全的单位,提供安全及可靠的桌面环境访问管道,其可确保在不同的安全网络架构上切换多台电脑

ATEN Secure KVM Solution

The ATEN Secure KVM Solution offers safe and reliable computer and peripheral access for government / military desktop environment where security is imperative, providing safe switching between computers operating on more than one secure network.

line

 Solution Highlights

NIAP Common Criteria Certified
The Secure KVM Switch is NIAP-certified and passed the Evaluation Assurance Level 2 (EAL2+) requirements for Peripheral Sharing Switch (PSS) for Human Interface Devices (HIDs) Protection Profile v2.1, satisfying the latest security requisites set by the U.S. Department of Defense for peripheral switches. Compliance ensures maximum information security while sharing a single set of HIDs (keyboards, mouse, speakers, etc.) between multiple computers. Conformity with Protection Profile v2.1 certifies that other USB peripherals cannot be connected to the console ports of the secure KVM switch, and that only a keyboard and mouse are accommodated, therefore providing high-level security, protection and safekeeping of data.
  security
Multilayered Security
Chassis Intrusion Detection – renders the Secure KVM Switch inoperable when malicious tampering is detected
Tamper-proof hardware – all integrated circuits are soldered directly to the circuit board to prevent tampering with the components
Tamper-evident tape – monitors any attempt to physically access the switch’s internal components
Non-reprogrammable ROM – prevents reprogramming the switch’s firmware
Restricted USB connectivity – non-HIDs are ignored when switching
Port selection via Pushbutton only – selecting ports via OSD and hotkey methods are disabled to enhance security

kvm
Boost Efficiency with KVM Features
  • Consolidate multiple workstations of various security classification levels using one keyboard, monitor and mouse (KVM) console.
  • Speaker and microphone support.
  • Video DynaSync™ – stores the console monitor’s EDID to optimize display resolution..

Channel Isolation
Isolated channel per port makes it impossible for data to be transferred between secure and unsecure computers.

High Resolution Video
DVI Dual Link feature offers true high definition capabilities required by professionals.
  clear keyboard
Cleared Keyboard Buffer
Switch's keyboard data is automatically deleted after it has been transmitted.



 Products

ATEN Secure KVM Switch

cs1182
 CS1182
2-port USB DVI Secure KVM Switch

cs1184
 CS1184
4-port USB DVI Secure KVM Switch

line

 Applications

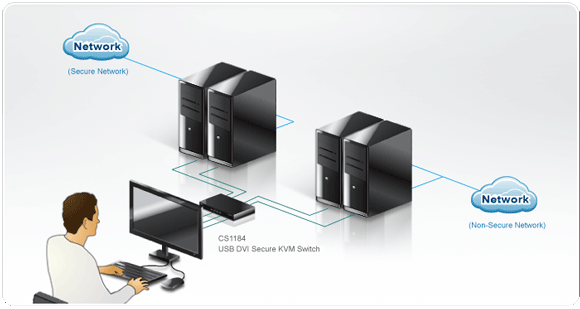

Secure Desktop Switching for High Resolution

  • One USB console controls 4 secure computers
  • Port selection via Pushbutton
  • Safely controls multiple computers that are set up in separate networks (one secured network, one unsecured network)
  • Superior video quality — 2560 x 1600 (DVI Dual Link)
