ATEN 宏正 成都 KVM 延长器 VE8900 HDMI over IP/HDMI over IP Transmitter (1080p@100m)
作者:管理员    发布于:2020-03-05 22:35:51    文字:【】【】【
摘要:经LAN无距离限制地延伸点对点到多点至多点的设定 通过面板按钮即可轻松切换输入来源 USB联机- USB连接端口(USB 2.0)允许设备联机如键盘、鼠标、磁盘、打印机与其它USB周边设备 提供多重功能,例如: 信号延长器、分配器、矩阵切换器、电视墙和串接应用 / Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN Delivers HDMI visually lossless high-quality video up to 1080p @ 60 Hz Effortlessly switches via top panel pushbuttons USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals*Daisy Chaining - Connects multiple displays through a single port Video Wall Support
概观:
ATEN宏正VE8900T HDMI over IP发送器经由标准千兆网络以低延迟远距离传递无失真的1080p / 4K影音信号。

VE8900T为一款简易且经济,并同时具备下列功能与优势的解决方案,在执行over IP系统时可直接解决系统集成商所遭遇的难题:

弹性扩充及灵活性
无复杂IP设定
无需额外服务器或软件
无需过多串接即可执行功能
VE8900T符合现今趋势包含大规模、多屏幕显示、1080p/4K信号传输的需求,且轻松设定和人性化操作, VE8900T HDMI over IP发送器适用于多种环境,如贸易展、机场、校园、会议中心与购物中心。
ATEN宏正VE8900R HDMI over IP接收器经由标准千兆网络以低延迟远距离传递无失真的1080p / 4K影音信号。

VE8900R为一款简易且经济,并同时具备下列功能与优势的解决方案,在执行over IP系统时可直接解决系统集成商所遭遇的难题:

弹性扩充及灵活性
无复杂IP设定
无需额外服务器或软件
无需过多串接即可执行功能
VE8900R符合现今趋势包含大规模、多屏幕显示、1080p/4K信号传输的需求,且轻松设定和人性化操作, VE8900R HDMI over IP接收器适用于多种环境,如贸易展、机场、校园、会议中心与购物中心。
/
The ATEN VE8900T Video over IP Transmitter delivers visually lossless 1080p AV signals with low latency over long distance via a local network of standard Gigabit network switch*

The VE8900T provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

Limitless scalability and flexibility
No complicated IP setup
No additional server PCs or software required
Go further for less with daisy chaining

Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900T Video over IP Transmitter is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide:

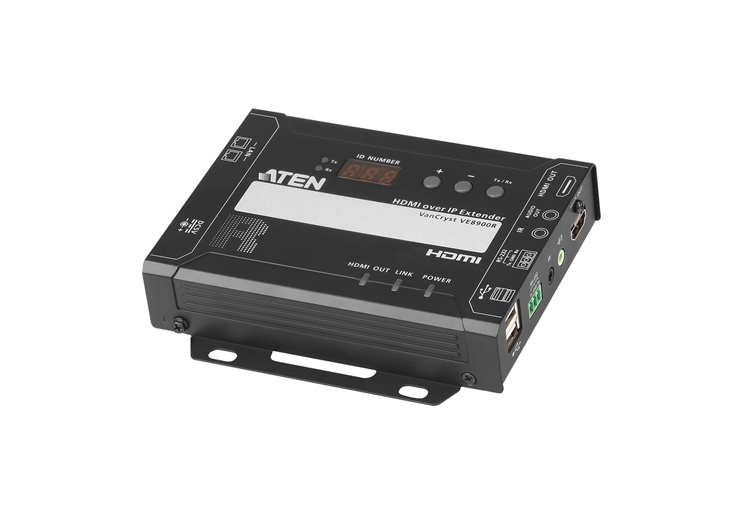

The ATEN VE8900R Video over IP Receiver delivers visually lossless 1080p AV signals with low latency over long distance via a local network of standard Gigabit network switch*.

The VE8900R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

Limitless scalability and flexibility
No complicated IP setup
No additional server PCs or software required
Go further for less with daisy chaining

Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers

*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide:

物品清单:
1x VE8900T 发送器
1x VE8900R 接收器
2x RS-232 端子台
2x 5V 电源适配器
2x 使用说明
/
1x VE8900T HDMI over IP Transmitter
1x VE8900R HDMI over IP Receiver
2x RS-232 Terminal block
2x 5V Power adapter
2x User instructions

特性:
具备超低延迟性的轻量压缩能力
传递分辨率高达1080p @ 60 Hz 的高质量影音信号
使用ATEN宏正进阶视频无失真压缩技术,达到优质视频质量
EDID Expert™选择最佳EDID设定,以顺利开机、呈现高质量显示,并在不同屏幕上显示最佳视频分辨率

弹性扩充及灵活性
经LAN无距离限制地延伸点对点到多点至多点的设定
提供多重功能,例如: 信号延长器、分配器、矩阵切换器、电视墙和串接应用

无复杂IP设定
简易配置不需具备广泛的IT经验或额外学习
通过面板按钮即可轻松切换输入来源

无需额外服务器电脑或软件
支持网络GUI进行配置管理
无需额外服务器电脑、控制盒、软件或驱动程序

无需过多串接即可执行功能*
通过单一连接端口连接多部显示器,有效运用网络交换机的各连接端口并发挥其最大价值
轻松延长- 线缆配置和系统部署简单且无需大量网络交换机或线缆
适合范围涵盖上百米的大规模环境,如饭店、机场、校园、车站、购物商场及展览中心
** 依您网络架构而定,我们建议最多串接30台。请联络ATEN宏正以了解更多详细信息。

*使用串接来设置电视墙或延长影音系统达上百米
电视墙支持
支持最大8 x 8的电视墙(64台显示设备)*
支持水平或垂直(90°旋转)显示方向
通过直观式网络GUI轻松切换配置设定文件、预览及拖放视频来源
* 依您网络架构而定,请联络ATEN以了解更多详细信息。

支持嵌入/解嵌音频
可将独立音频信号嵌入至HDMI信号中

多种控制通道
多种控制方式- 可通过以太网络或面板按钮管理系统
USB联机- USB连接端口(USB 2.0)允许设备联机如键盘、鼠标、磁盘、打印机与其它USB周边设备
双向IR通道- 一次处理一个方向的IR传输
RS-232通道- 双向RS-232串行端口允许连接周边设备,如触控屏幕及条形码扫描仪
/
Lightweight Compression with Ultra-low Latency
Delivers visually lossless high-quality video up to 1080p @ 60 Hz
Ensures stunning quality video using ATEN advanced video lossless compression technology
EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage

Limitless Scalability and Flexibility
Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications

Collaboration with ATEN Control System
Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8900T via CLI Telnet or RS-232 protocol
Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad

Spontaneous Scheduling Management
Offers an user-friendly scheduling management function for users to pre-plan the display schedule
Provides robust and intuitive scheduling management options to help users to manage all events in the calendar to as detailed as to setting events to minute intervals
Integrates all VE89 units to arrange the profile by grouping individual receiver or video wall
Multiple profiles can be arranged to play in any order over a selected period of time

No Complicated IP Setup
Simple configuration that requires no extensive IT experience or extra learning

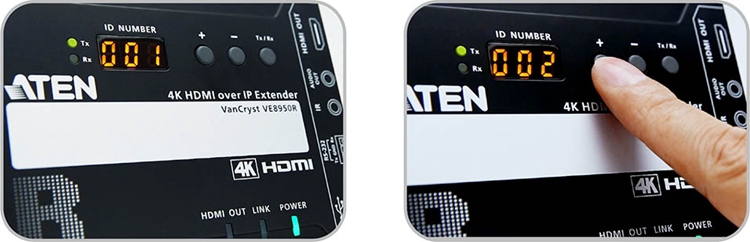

Effortlessly switches among input sources via top panel pushbuttons

Web GUI-Based Management, No Additional Server PCs or Software Required
Simple Access – Without typing IP address on Chrome browser, users are allowed to directly link to VE Manager via one click on “Find My VE” Chrome based free tool

Go Further For Less with Daisy Chaining*
Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers
* Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.

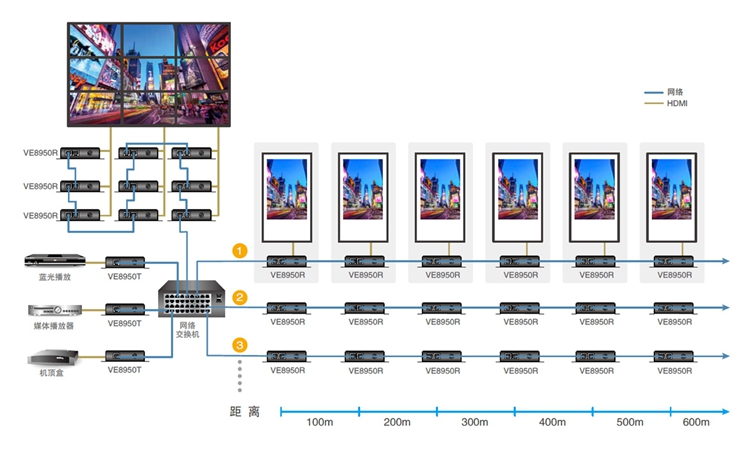

Daisy Chaining
*Use daisy chains to configure a video wall or expand the AV system hundreds of meters
Video Wall Support
Supports up to 8 x 8 video wall (64 displays)*
Supports horizontal or vertical (90° and 270° rotation) display orientation
Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI
*Depends on your network architecture, please contact ATEN representatives for more details.

Embedded / De-embedded Audio Support
Separate audio signal can be embedded into the HDMI stream

Multiple Control Channels
Multiple control methods – the system can be managed via Ethernet or top-panel pushbuttons
USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals*
Bi-directional IR Channel – IR transmission is processed one way at a time
RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and bar code scanners
Note: *Each VE8900T transmitter can be controlled by a total of 4 USB touch screens installed to VE8900R receivers.

Please refer to the FAQ link below on how to select network switches and network switch information collected by ATEN Customer Service Division, where the collected information includes customer's feedback from their actual experience in using and installing the product(s).

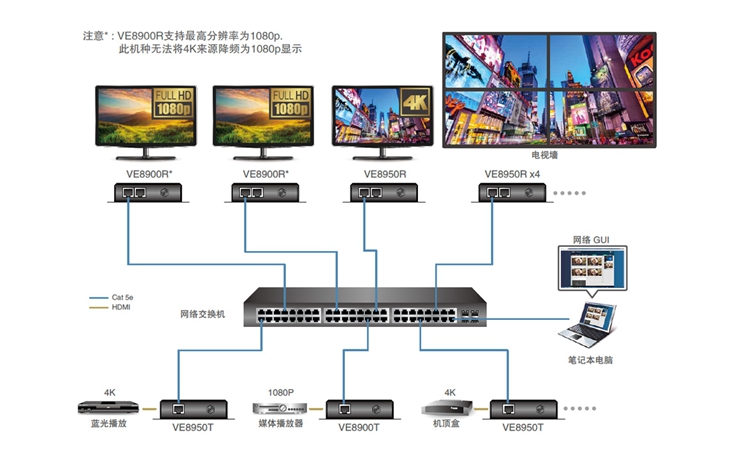

连接示意图:
