vm1600 数字矩阵 16进16出 无缝切换 自带画面拼接功能 插卡式dvi HDMI 混和矩阵
编号:vm1600
品牌:   [查询该品牌全部商品]
单位:个
积分:0
重量:5000 克
vm1600 数字矩阵 16进16出 无缝切换 自带画面拼接功能 插卡式dvi HDMI 混和矩阵
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (4032) | 评论 (0) | 评分(0)
商品介绍
详细参数
VM1600
模块化矩阵式影音整合方案


VM1600模块化矩阵式影音切换器提供进阶访问及通过单台机壳实时控制多台本地和远程A/V输入设备及显示设备。VM1600允许用户按下前面板按键便能独立切换及直接传送视频和音频内容至各种屏幕、显示设备、投影仪和扬声器。内建的升频器功能可确保每个屏幕能够显示画面,无缝切换可确保稳定的信号传输。此外,前面板LCD显示屏幕可快速检视端口的连接状况及选择EDID模式可提供最佳分辨率画面至各种不同的屏幕上。
VM1600的简易扩充及其热插拔设计可轻松整合ATEN输入/输出板卡。该机壳具备的自动信号转换功能可允许任何组合搭配数字视频格式,如DVI(VM7604/VM8604)及HDMI(VM7804/VM8804)。针对像广播电台、交通运输控制室、紧急服务中心及任何需要客制化高速A/V影音信号布线的环境,可提供完整的A/V影音整合方案。

连接任何16组视频来源及任何16组显示设备整合于ATEN模块化矩阵式影音整合方案
视频分辨率 - HDTV分辨率可达480p、720p、1080i和1080p (1920 x 1080); VGA、SVGA、XGA、SXGA及WUXGA (1920 x 1200)
HDMI (3D、深色) (VM7804/VM8804)
兼容于HDCP 1.4规格
无缝切换 - 提供连续的信号源,实时切换和稳定的信号传输
独家EDID技术 - 选择了平稳的输出和最高品质的显示最佳的EDID设置
内建EDID wizard - 提供简易方式以客制化EDID设定
可在多个信号来源与多个显示设备间轻松切换
硬件设定
- 前面板按键
- RS-232串口连接端口
系统操作
- 网络浏览器的用户图形化界面(GUI)
- Telnet
内建双向RS-232串口连接端口,可用于高阶系统控制
热插拔设计
- 模块化风扇设计
- 电源模块
- 轻松整合输入/输出板卡
电视墙 - 通过web GUI可提供高达32组客制化连接的profiles
提供冗余电源可提供操作连续不间断
通过Web可更新固件
机架式设计
内建升频器在每个输出端口支持缩放功能自动调整至每个不同的视频分辨率
支持消费性电子控制(CEC) (VM7804/VM8804)
支持音频功能,可撷取HDMI音频,也可使用额外的立体声音频(VM7804/VM8804)

注意 : 当开启无缝切换功能时,视频输出设备不显示3D、深色或循序扫描(如1080i)分辨率等产品特性。如要使用这些功能,必须关闭无缝切换功能。

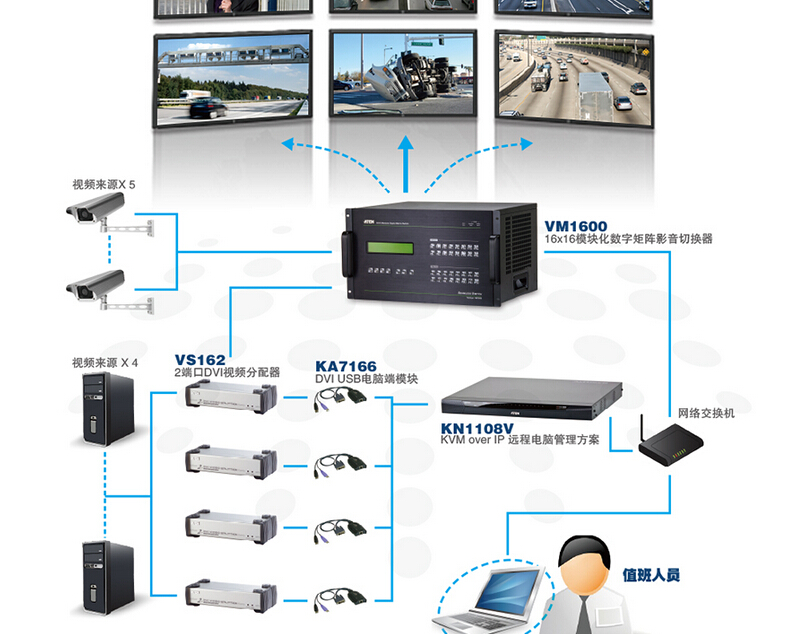

VM1600 Diagram


内建升频功能可弹性整合不同的视频输入/输出接口,并在确保稳定传输信号的同时为各种视频格式提供无缝实时切换。VM1600可放置于一个机架上就可扩展影音系统规模,极易扩充并可容纳一组可热插拔的ATEN输入/输出板。ATEN VanCrystTM数字矩阵式影音整合方案可完美适用于会议室、培训室或其它需要大规模影音设置的环境。

arrow_titlew     产品优势

          轻松设定及控制         独家EDID技术
          顺畅及无缝的视觉体验         优异平衡音频质量
          优异的多媒体支持         电视墙
          热插拔风扇模块设计         数字看板
          热插拔板和冗余电源
    product




VM1600
16x16 Modular Matrix Switch


The VM1600 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM1600 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections, with an option to select an EDID Mode that yields the best resolution across different monitors.

VM1600 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion, it allows any combination of digital video formats, such as, HDBaseT (VM7514 / VM8514), HDMI (VM7804 / VM8804), DVI (VM7604 / VM8604), 3G-SDI (VM7404) and VGA (VM7104), thus making it ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers and any application that requires customizable high speed A/V signal routing.


Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix Solutions
Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA and WUXGA (1920 x 1200)
HDCP 1.4 Compatible
Seamless Switch™ – provides continuous video streams, real-time switching and stable signal transmission*
Video wall - allows you to create custom video wall layouts via intuitive web GUI
EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
Easily switch between multiple sources and multiple displays
Hardware Configuration:
• Front panel pushbuttons
• RS-232 serial port
System Operation
• Browser-based Graphical User Interface (GUI)
• Telnet
Built-in bi-directional RS-232 serial remote port for high-end system control
Hot-pluggable:
• Modular Fan Design
• Power Module
• Easy integration of I/O boards
Optional redundant power supply for continuous operation
Firmware upgradeable via web
Rack Mountable
Built-in scaler on each output port to support the scaling function for different video resolutions
Consumer Electronics Control (CEC) support (VM7804/VM8804)
Audio-enabled, HDMI audio can be extracted, and stereo audio can be embedded (VM7804/VM8804)

Note:
If Seamless Switch is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolution features. To use of these features, you must disable Seamless Switch.


Video Input
Interfaces Depends on which I/O board is inserted
Impedance 100 Ώ
Max. Data Rate 10.2 Gbps (3.4 Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
HDBaseT Compatible
Audio
Input Depends on which Input board is inserted
Output Depends on which Output board is inserted
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations:
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
RS-485/RS-422 Connector: 1 x Captive Screw Connector, 5 Pole
Ethernet Connector: 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Power
Connectors 1 x 3-Prong AC Socket
Maximum Input Power Rating 100-240 VAC; 50-60Hz; 1.0A
Consumption 120 VAC, 180W; 230 VAC,172W
*A redundant power supply is optional.
Fan Airflow: 60 cfm
Operating Voltage: 10.8 - 13.8 VDC
Operating Temp: -10 - 70°C
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 17.00 kg ( 37.44 lb )
Dimensions (L x W x H) 48.22 x 39.90 x 26.59 cm
(18.98 x 15.71 x 10.47 in.)
Carton Lot 1 pc
