VM0808T 8进8出 CAT5 视频矩阵
编号:VM0808T
品牌:   [查询该品牌全部商品]
单位:个
积分:0
重量:3500 克
VM0808T 8进8出Cat 5 矩阵式影音切换器是一款通过 Cat 5传输影音+串口信号的多功能解决方案,其与ATEN影音信号延长器VE500搭配使用,可轻松将8组影音信号来源传送到8组显示设备,传输距离最远可达300米。

通过VM0808T的8个Cat 5影音输入端口,其可将8组影音信号来源,经由8台发送器(VE500T)与8台接收器(VE500R / VE500RQ),同时连接至8组屏幕、显示器或投影机等显示设备。除了8个Cat 5连接端,VM0808T同时内建本地的影像及音频输入/输出连接端口,因此一台额外的信号来源设备与屏幕可与VM0808T架设于同一机柜,VM0808T本身即可担任信号传输及接收的角色。
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (1149) | 评论 (0) | 评分(0)
商品介绍
详细参数

8x8 Cat 5 矩阵式影音切换器


VM0808T 8进8出Cat 5 矩阵式影音切换器是一款通过 Cat 5传输影音+串口信号的多功能解决方案,其与ATEN影音信号延长器VE500搭配使用,可轻松将8组影音信号来源传送到8组显示设备,传输距离最远可达300米。

通过VM0808T的8个Cat 5影音输入端口,其可将8组影音信号来源,经由8台发送器(VE500T)与8台接收器(VE500R / VE500RQ),同时连接至8组屏幕、显示器或投影机等显示设备。除了8个Cat 5连接端,VM0808T同时内建本地的影像及音频输入/输出连接端口,因此一台额外的信号来源设备与屏幕可与VM0808T架设于同一机柜,VM0808T本身即可担任信号传输及接收的角色。

Zoom In

兼容的ATEN Cat 5影音信号接收器:
VE500T Over Cat 5发送器
VE500R Over Cat 5接收器
VE500RQ Over Cat 5接收器(具备校正信号偏移功能)

Rohs Weee Windows 7
专利号码

CN ZL 01124239.6 , CN ZL 02824593.8 , CN ZL 200410042772.8 , CN ZL 200710162351.2 , DE 102004058233 , JP 4160936 , JP 4558319 , JP 4651633 , TW 150098 , TW 203183 , TW I243890 , TW I337456 , US 6160543 , US 6489854 , US 6957287 , US 7340556 , US 7456696 , US 7472217 , US 7532998

包装明细
  • 1x VM0808T 8x8 Cat 5 矩阵式影音切换器
  • 1x 电源线
  • 1x 机架安装配件
  • 3x 端子台
  • 1x 使用说明

功能特点:

  • 与ATEN影音信号延长器VE500搭配使用,可将8组影音信号来源传送到8组显示设备
  • 长距离信号范围–支持发送器(VE500T)与接收器(VE500R/VE500RQ)间的距离最远达300 米
  • 轻松切换于多个信号来源与多个显示设备间
  • 本地操作:
     •前端LCD显示面板与按键
     •串口控制端
  • 远程操作:
     •网络浏览器的使用者图形接口
     •远程登入指令
  • 支持额外的本地输出与显示 – 提供一组本机端的影音输入/输出连接端口
  • 高视频分辨率–最高可达1920 x 1200@60Hz; DDC2B
  • 支持立体声与平衡式音源(balanced audio)
  • 自动与可调整的视频和音频质量
  • 可独立切换视频与音频来源 – 可任意连接任何的音频来源至任一输出端口,让输出信号更具弹性
  • 支持固件更新
  • 机架式设计



    连线图:

    技术规格:

    输入端连接数 直接 1 (本地)
    多数 9 (1 x本地输入;
    8 x VE500T发送器)
    显示端
    连接数
    直接 1 (本地)
    多数 9 (1 x本地显示;
    8 x VE500R/RQ接收器)
    连接端口 本地 音频输入 Balanced 1 x 5孔端子台
    Stereo 1 x Mini Stereo Jack母头(绿)
    视频输入 1 x HDB-15 公头 (蓝)
    音频输出 Balanced 1 x 5孔端子台
    Stereo 1 x Mini Stereo Jack母头(绿)
    视频输出 1 x HDB-15 母头 (蓝)
    端对端 A/V In 8 x RJ-45 母头
    A/V Out 8 x RJ-45 母头
    以太网络 1 x RJ-45 母头
    串行端口 RS-232 1 x DB-9 母头 (黑);
    1 x DB-9 公头 (黑)
    RS-485 /
    RS-422
    1 x 5孔端子台
    电源 1 x 3叉AC插座
    切换按键 上/下/左/右 4 x 按键
    选单 1 x 按键
    音频 1 x 按键
    Esc 1 x 按键
    Enter 1 x 按键
    电源 1 x Rocker
    显示器 1 x 显示面板 (绿)
    LED指示灯 选单 1 (蓝)
    音频 1 (蓝)
    上/下/左/右 4 (蓝)
    耗电量 110V / 16W; 220V / 17W
    作业环境 操作温度 0-50°C
    储存温度 -20-60°C
    湿度 0-80% RH, 无凝结


    型体特性
    外壳 金属
    重量 3.50 kg
    尺寸
    (长×宽×高)
    43.20 x 25.30 x 4.40 cm


  • VM0808T
    Media Matrix Solution
    8x8 Cat 5 A/V Matrix Switch


    The VanCryst™ Media Matrix Solution is a combination of the VM0808T 8 x 8 Cat 5 A/V Matrix Switch and the VE500 / VE300 A/V Over Cat 5 Extender. The VM0808T is a Matrix Switch that uses VE500/VE300 extenders to route and distribute audio, video, and RS-232 signals over distances of up to 300 meters with 1280x1024 video resolutions

    The VM0808T can receive data from up to 8+1 audio/video sources and transmit data to up to 8+1 audio/video displays. The VM0808T offers several convenient ways to access and control the source devices: locally, with front panel pushbuttons and an RS-232/ RS-485/RS-422 serial port; and remotely, over the Internet with a browser-based web page interface.

    The Media Matrix Solution is an ideal solution when long runs to the A/V output locations are required, and where versatility and security are essential. The VM0808T is designed for deployment in environments that involve routing video signals such as those found in casinos, transportation and logistics centers, traffic control centers, port security facilities, industrial supervision settings, etc.

    Connects any of 8 Cat 5 A/V inputs to any of 8 Cat 5 A/V outputs in combination with ATEN VE500/VE300 A/V Over Cat 5 Extender system
    Long signal range – supports up to 300 meters between VE500T/VE300T transmitters and VE500R/VE500RQ/ VE300R/VE300RQ receivers
    Easily switch between multiple sources and multiple displays
    Local Operation:
    • Front panel LCD display and pushbuttons
    • Serial controller
    Remote Operation:
    • Browser Graphical User Interface (GUI)
    • Telnet
    Supports additional local input and local display – provides an extra input / output source
    Built-in bi-directional RS-232 serial port for high-end system control
    Supports Video Quality – up to 1920 x 1200@60Hz; DDC2B
    Supports stereo and balanced audio
    Automatic and adjustable video and audio quality
    Independent switching of audio and video sources – any audio source can be connected to any video source for output flexibility
    Firmware upgradeable
    Rack Mountable

    * Note: The VM0808T AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

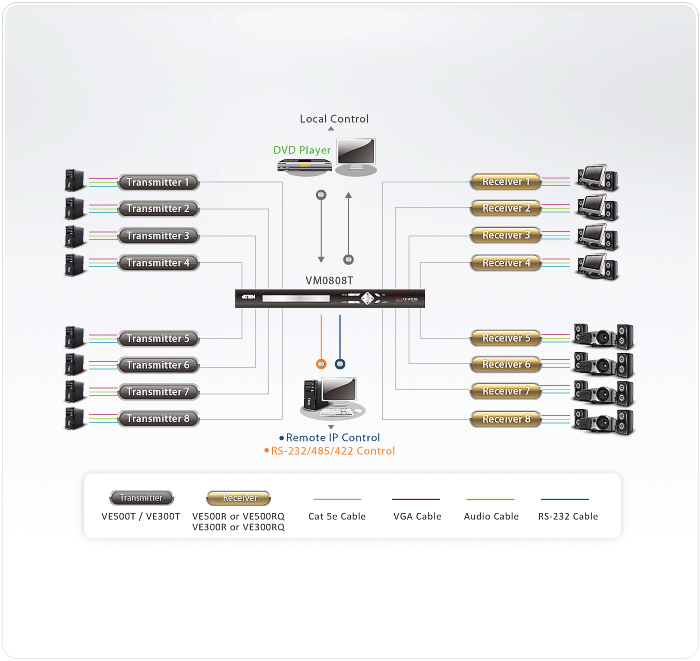

    VM0808T Diagram

    Video Input
    Interfaces8 x RJ-45 Female
    Impedance100 Ώ
    Video Output
    Interfaces8 x RJ-45 Female
    Impedance100 Ώ
    Video
    Max. Bandwidth500 MHz
    Max. ResolutionUp to 1920 x 1200 (Depends on connected receiver)
    Max. DistanceUp to 300 m (Depends on connected receiver)
    *The maximum transmission distance between the transmitter and the receiver is 300 m.
    Audio
    InputBalanced: 1 x Captive Screw Connector, 5 Pole
    Stereo: 1 x Mini Stereo Jack Female (Green)
    OutputBalanced: 1 x Captive Screw Connector, 5 Pole
    Stereo: 1 x Mini Stereo Jack Female (Green)
    Control
    RS-232Connector:1 x DB-9 Female (Black); 1 x DB-9 Male (Black)
    Serial Control Pin Configurations:
    Male: Pin2 = Rx, Pin 3 = Tx, Pin 5 = Gnd
    Female: Pin2 = Tx, Pin 3 = Rx, Pin 5 = Gnd
    Baud rate and protocol:
    Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No, Flow Control: No
    RS-485/RS-422Connector: 1 x Captive Screw Connector, 5 Pole
    Ethernet1 x RJ-45 Female
    Power
    Connectors1 x 3-prong AC socket
    Maximum Input Power Rating100-240 VAC~:50-60 Hz; 1.0A
    Consumption110 VAC, 16W; 220 VAC, 17W
    Environmental
    Operating Temperature0-50°C
    Storage Temperature-20 - 60°C
    Humidity0 - 80% RH, Non-Condensing
    Physical Properties
    HousingMetal
    Weight3.50 kg ( 7.71 lb )
    Dimensions (L x W x H)43.24 x 26.30 x 4.40 cm
    (17.02 x 10.35 x 1.73 in.)
    Carton Lot1 pc
