VM0404H 4进4出 HDMI 视频矩阵
编号：VM0404H
品牌： [查询该品牌全部商品] 单位：个 积分：0 重量：1860 克 VM0404H是一款4x4 HDMI矩阵式影音切换器，其提供一个简便的方式将任意4组HDMI来源的高解析影音信号传送至任意4组HDMI显示设备。VM0404H能让用户将4组HDMI显示设备(例如HD摄录像机或卫星接收机上盒、HD-DVD播放器、高清蓝光播放器、家庭剧院PC、独立串流媒体播放器、游戏机等)同时连接至4组HDMI屏幕，显示设备，投影机或电视。使用者可以通过遥控器与方便的前端面板按键，快速且轻松的在HDMI信号来源与显示设备之间进行切换，同时，前端面板LED指示灯会显示信号来源设备的状态。
商品售价：￥0.00
订购数量：
个
|
商品介绍
详细参数
HDMI矩阵式影音切换器
VM0404H是一款4x4 HDMI矩阵式影音切换器，其提供一个简便的方式将任意4组HDMI来源的高解析影音信号传送至任意4组HDMI显示设备。VM0404H能让用户将4组HDMI显示设备(例如HD摄录像机或卫星接收机上盒、HD-DVD播放器、高清蓝光播放器、家庭剧院PC、独立串流媒体播放器、游戏机等)同时连接至4组HDMI屏幕，显示设备，投影机或电视。使用者可以通过遥控器与方便的前端面板按键，快速且轻松的在HDMI信号来源与显示设备之间进行切换，同时，前端面板LED指示灯会显示信号来源设备的状态。
包装明细
- 1x VM0404H 4x4 HDMI矩阵式影音切换器
- 1x 红外线遥控器
- 1x 电源变压器
- 1x 机架安装配件
- 1x 使用说明
功能特点：
* 注意: VM0404H AP与GUI操作手册可自ATEN官方网站(www.aten.com.tw)下载使用

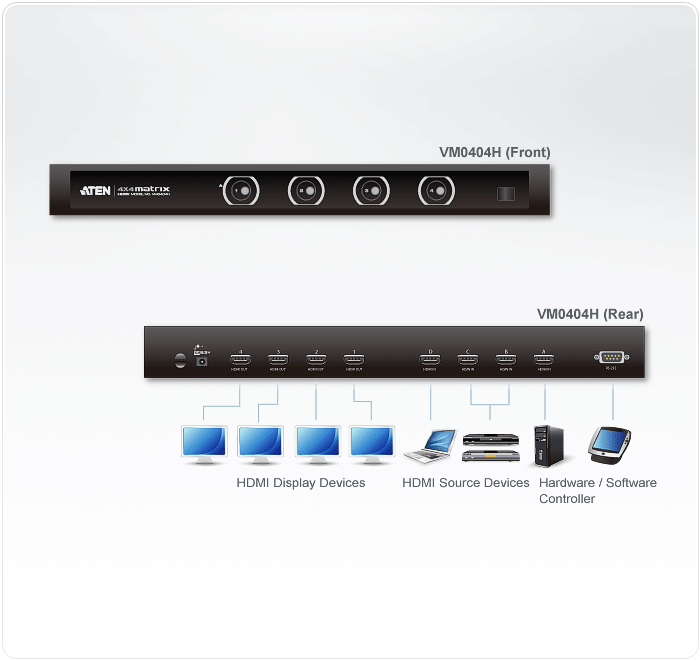

连线图：
技术规格：
| 显示器连接数 | 直接 | 4 | |
| 最多 | 64 (通过堆叠串接) | ||
| HDMI 输入端连接 | 4 | ||
| 连接端口 | 设备 | HDMI输入 | 4 x HDMI Type A 母头 (黑) |
| 显示器 | HDMI 输出 |
4 x HDMI Type A 母头 (黑) | |
| RS-232 连接端口 | 1 x DB-9 母头 (黑) | ||
| 电源 | 1 x DC Jack | ||
| 切换器 | 连接端口选择 | 4 x 按钮 | |
| LED 指示灯 | 已选择 | 16 (绿) | |
| 视频分辨率 | HDTV 分辨率高达 1080p; 电脑分辨率达 WUXGA (1920x1200) | ||
| 耗电量 | DC5.3V, 9W (最大) | ||
| 作业环境 | 操作温度 | 0-50°C | |
| 储存温度 | -20-60°C | ||
| 湿度 | 0-80% RH , 无凝结 | ||
| 机体属性 | 外壳金属 | 金属 | |
| 重量 | 1.86 kg | ||
| 尺寸 (长x宽x高) |
43.20 x 15.40 x 4.40 cm | ||
VM0404H
HDMI Matrix Switch
The VM0404H is a 4x4 HDMI Matrix Switch that provides a convenient way to route high definition video and audio from any of four HDMI sources to any of four HDMI displays. The VM0404H allows you to connect four HDMI devices (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, or gaming console) to four HDMI monitors, displays, projectors or TVs at the same time.
The remote control and convenient front panel pushbuttons allow you to quickly and easily cycle through HDMI sources and displays, while the front panel LEDs indicate the source device for each display at a glance.
All-metal casing
* Note: The VM0404 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Connects any of four HDMI sources to any of four HDMI displays
Toggle between HDMI sources and displays using remote control or front panel pushbuttons
Superior video quality – HDTV resolutions of 480p, 720p,1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200)
HDCP 1.1 compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
HDMI (3D, Deep Color)
Features EDID expert technology to set up different video configurations via different EDID modes
Supports Dolby True HD and DTS HD Master Audio
Up to 60 Hz refresh rate
Long-distance transmission – up to 20 m (24 AWG)
Built-in bi-directional RS-232 serial remote port for high-end system control *
Power On Detection – if one HDMI source is powered off, the VM0404H will automatically switch to the next powered-on source
DDC compatible
Signaling rates up to 2.25 Gbits in support of 1080p display
All-metal casing
Easy and affordable way to add four HDMI inputs to your multiscreen home theater system
Rack Mountable
