产品详情
|
CV131A sun控制信号转换器 (已停产)
编号:CV131A
品牌: [查询该品牌全部商品] 单位:个 积分:0 重量:200 克 CV131A是专为SUN系统所设计的信号转换器,可与KVM切换器搭配使用。此两款转换器不仅安装容易,且可通过键盘热键进行设定。
商品售价:¥0.00
订购数量:
个
|
浏览 (1698) | 评论 (0) | 评分(0)
商品介绍
详细参数
KVM信号转换器
CV131A是专为SUN系统所设计的信号转换器,可与KVM切换器搭配使用。此两款转换器不仅安装容易,且可通过键盘热键进行设定。
专利号码
US D459308
包装明细
- 1xKVM信号转换器
- 1x用户手册
功能特点:
*仅兼容配件SPHD PS/2 及Combo 接口产品

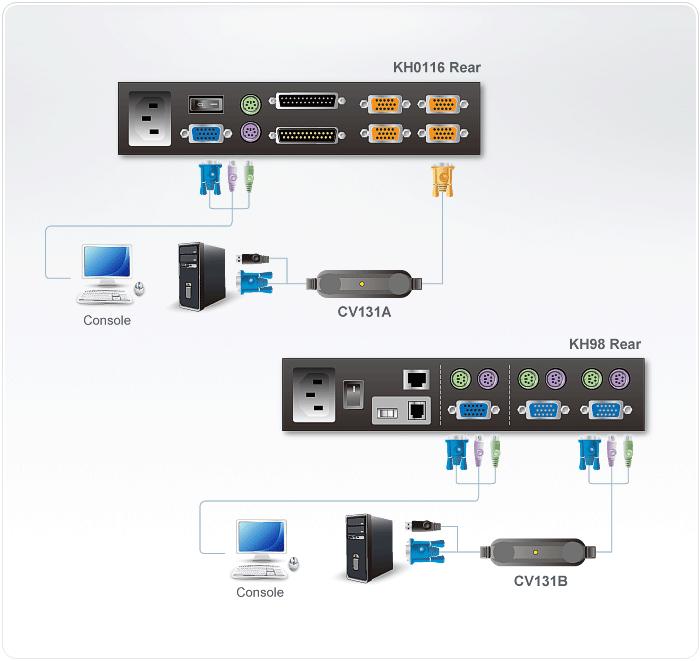

连线图:
技术规格:
功能 | CV-131A | ||
控制端连接 | 1 | ||
连接接口 | 连接至SUN | 键盘/鼠标 | 1 x USB Type-A 公头 (黑) |
显示器 | 1 x HDB-15 公头 (黑) | ||
连接至切换器 | 键盘 | 1 x SPHD-15 公头 (黄) | |
显示器 | |||
鼠标 | |||
LED 指示灯 | 电源 | 1 (橘) | |
耗电量 | 1.1W | ||
键盘/鼠标仿真 | Sun键盘/鼠标 | ||
视频分辨率 | 1152 x 900, 1280 x 1024, 1600 x 1200 | ||
操作温度 | 0°C ~ 50°C | ||
储存温度 | -20 °C ~ -60°C | ||
湿度 | 0-80% RH, NC | ||
外壳 | 塑料 | ||
重量 | 0.2 Kg | ||
线材长度 | 180cm |
Sun Console Converter (SPHD Connector) Discontinued
CV131A
CV131A is a signal converter specifically designed for SUN systems. They can be used with KVM switches. Both models are easy to install and can be configured via the hotkeys on the keyboard.
ROHS Weee
Share Add to Compare
Package Contents
1x SUN Signal Converter Cable
1x User Manual
Features
Diagram
Specification
Support and Download
Compatible with Sun USB systems
Compatible with ATEN or ALTUSEN SPHD* or PS/2 equipped KVM switches
Translates PS/2 keyboard, mouse, and VGA signals to Sun USB keyboard, mouse and monitor signals
High quality molded connectors
Keyboard language selection via simple hotkeys
Composite sync video support
Supports PS/2 mice and Microsoft Intellimouse
External power adapter not required
Supports 1600 x 1200, maximum video resolutions including Sun specific: 1152 x 900
