CS1784A ATEN 宏正 4端口 USB2.0, 双通道 DVI KVMP切换器,SUN,MAC, 支持音频(1.8米x4)
编号:CS1784A
品牌:ATEN [查询该品牌全部商品] 单位:个 积分:0 重量:930 克 规格: 型号: CS1784A USB DVI Dual Link KVMP™多电脑切换器的推出,为KVM产品功能创造了革命性的新方向。此款产品整合了4端口KVM多电脑切换器与2端口USB Hub,同时支持DVI接口的显示器与音频功能。此外,CS1784A提供的进阶功能,例如支持nVidia 3D Vision ready120Hz 3D显示、游戏键盘,并可通过鼠标切换选择连接端口,提供用户弹性化、方便的使用环境。
商品售价:¥0.00
订购数量:
个
|
浏览 (1462) | 评论 (0) | 评分(0)
商品介绍
详细参数
4端口USB DVI Dual Link KVMP™多电脑切换器
CS1784A USB DVI Dual Link KVMP™多电脑切换器的推出,为KVM产品功能创造了革命性的新方向。此款产品整合了4端口KVM多电脑切换器与2端口USB Hub,同时支持DVI接口的显示器与音频功能。此外,CS1784A提供的进阶功能,例如支持nVidia 3D Vision ready120Hz 3D显示、游戏键盘,并可通过鼠标切换选择连接端口,提供用户弹性化、方便的使用环境。
功能特点:

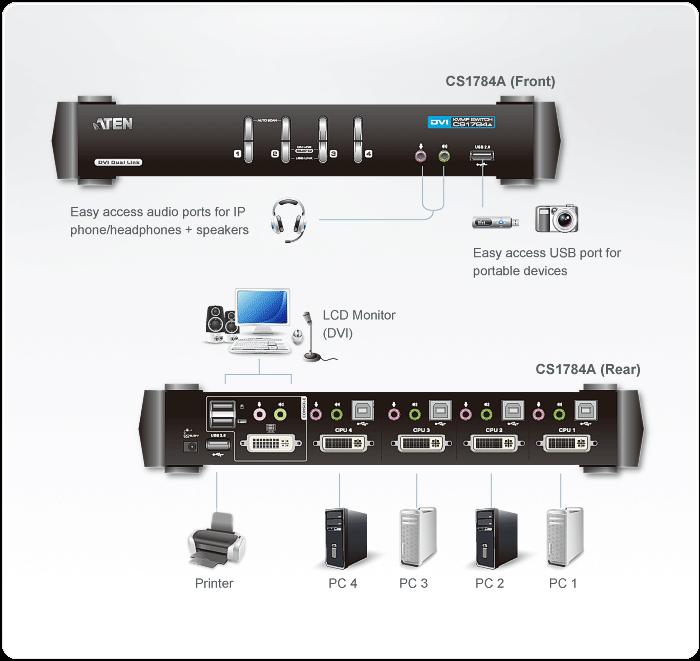

连线图:
技术规格:
电脑连接数 | 4 | |||
连接端口选择 | 前端面板按键、热键、鼠标 | |||
接口 | 控制端 连接端口 |
键盘 | 1 x USB Type A 母头 (黑; 背板) | |
显示器 | 1 x DVI-I 母头 (白) | |||
鼠标 | 1 x USB Type A 母头 (黑; 背板) | |||
音频 | 扬声器 | 2 x Mini Stereo Jack 母头 (绿; 1 x 前板, 1 x 背板) | ||
麦克风 | 2 x Mini Stereo Jack 母头 (粉红; 1 x 前板, 1 x 背板) | |||
KVM 连接端口 |
键盘 / 鼠标 | 4 x USB Type B 母头 (白) | ||
显示器 | 4 x DVI-I 母头 (白) | |||
音频 | 2.1扬声器输出(7.1前置扬声器输出) | 4 x Mini Stereo Jack 母头 (绿) | ||
麦克风 | 4 x Mini Stereo Jack 母头 (粉红) | |||
电源 | 1 x DC Jack | |||
USB 2.0 Hub | 2 x USB Type A 母头 (白; 1 x 前板, 1 x 背板) | |||
开关 | 已选泽 | 4 x Pushbutton | ||
LEDs | 联机/已选泽 | 4 (橘) | ||
USB连接 | 4 (绿) | |||
信号仿真 | 键盘 / 鼠标 | USB | ||
视频分辨率 | DVI Dual Link: 2560x1600 DVI Single Link: 1920 x 1200 | |||
扫描区间 | 1–99 秒 (5秒为默认值) | |||
耗电量 | DC 5.3V, 10 W | |||
作业环境 | 操作温度 | 0 -50°C | ||
储存温度 | -20-60°C | |||
湿度 | 0–80% RH, 无凝结 | |||
机体属性 | 外壳 | 金属 | ||
重量 | 0.93 kg | |||
尺寸 ( 长 x 宽 x 高 ) |
27.00 x 8.70 x 5.50 cm |
4-Port USB DVI Dual Link KVMP™ Switch
CS1784A
The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
nVidia 3D_for CS1642/1644/1782A/1784A ROHS Weee
Share Add to Compare
Package Contents

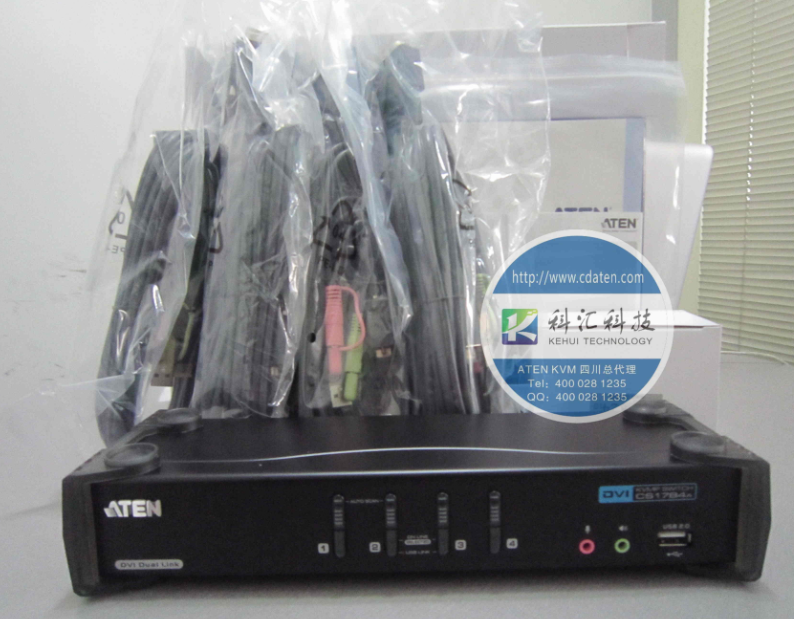

1x CS1784A USB DVI Dual Link KVMP™ Switch
4x Custom DVI-D KVM Cable Sets
1x Power Adapter
1x User Manual
1x Quick Start Guide
Awards won by this product
Features
Diagram
Specification
Applications
Support and Download
4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
One USB console controls four computers and two additional USB devices
2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
Full bass response for high quality 2.1 channel surround sound systems
Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
Multiplatform support – Windows, Linux, Mac, and Sun*
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with the DVI specifications
Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
HDCP compatible
Support widescreen resolutions
Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping – supports English, Japanese, and French keyboards
Auto Scan Mode for monitoring all computers
Firmware upgradable
* PC keyboard combinations emulate Mac/Sun keyboards
Mac/Sun keyboard work only with their own
