CE680 ATEN 宏正 DVI 光纤信号延长器 单模 延长600米 1920*1200
编号:CE680
品牌:ATEN   [查询该品牌全部商品]
单位:个
积分:0
重量:1100 克
型号:
规格:
CE680可由本地或远程的控制端(USB键盘、显示器及鼠标)访问电脑系统。此外,通过光纤技术连结远程及本地设备,提供用户更快速简便的安装方式以及更长距离的DVI信号传输 - 达600m。
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (1396) | 评论 (0) | 评分(0)
商品介绍
详细参数

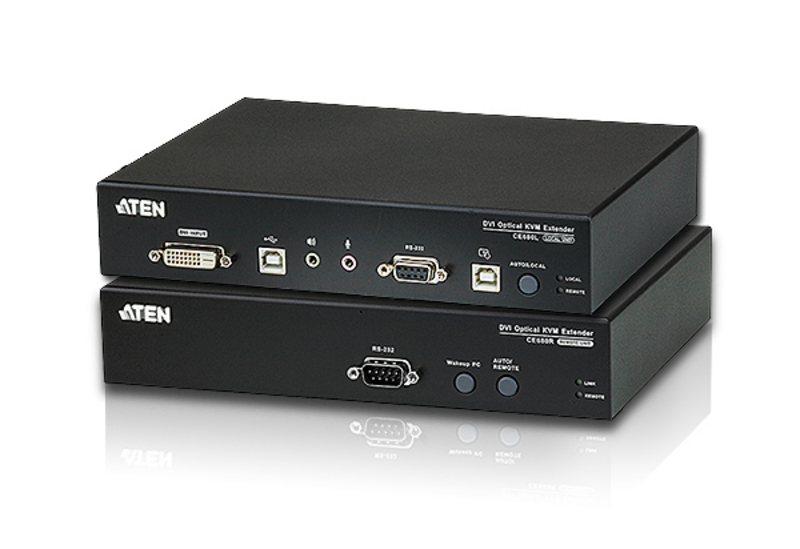

CE680
DVI光纤KVM信号延长器
CE680 Zoom In CE680 CE680

CE680 DVI光纤KVM信号延长器突破一般DVI标准线缆距离的限制,通过光纤技术延伸高质量音频、视频及控制端信号达600m。单一3.125Gbps光纤连结传送一组本地的视频/音频信号来源(分辨率最高为1920x1200@60Hz,24-bits)。


除了延长键盘及鼠标的操作外,CE680也可双向传输RS-232(高达115kbps)与USB信号。RS-232可连接至串口设备如条形码扫描器;另可通过本地及远程设备的USB Type A端口连接触控屏幕设备,由远程控制端执行操控。

CE680可由本地或远程的控制端(USB键盘、显示器及鼠标)访问电脑系统。此外,通过光纤技术连结远程及本地设备,提供用户更快速简便的安装方式以及更长距离的DVI信号传输 - 达600m。





    通过远程控制端访问电脑或KVM设备
    支持DVI-D接口以及传输DVI Single Link信号
    视频分辨分辨率高达1920x1200@60Hz(24位, 3.125Gbps) - 长距离传输高清信号至显示设备,最远可达600m
    支持触控屏幕 - 连接一台最高可支持10点触控的触控式屏幕设备(无需安装额外的驱动程序)
    双控制端操作- 通过本地及远程控制端(USB键盘、鼠标和显示器)控管您的系统
    使用光纤线缆连接本地与远程设备
    兼容于HDCP规格
    RS-232串口连接端口 - 可连接串口终端机或串口设备,例如触控式屏幕与条形码扫描仪(波特率115200bps)
    电脑唤醒功能 - 按下远程设备的前面板按键即可通过本地RS-232唤醒本地的电脑
    音频功能 - 支持立体声扬声器与麦克风
    可安装于机架上

CE680
DVI Optical KVM Extender

CE680 Zoom In CE680  CE680  CE680
The CE680 is a DVI Optical KVM Extender that overcomes length restrictions of standard DVI cables by using fiber optics to send high definition audio, video and control signals over longer distances. The CE680 can transmit KVM DVI signals very long distances - up to 600 m away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gbps optical link, for resolutions up to 1920 x 1200 @ 60Hz, 24-bits, with picture perfect quality.

In addition to extending keyboard and mouse control, the CE680 also transfers RS-232 signals (up to 115 kbps) and USB signals in both directions, with ports for both, allowing you to connect serial devices, such as barcode scanners; or USB devices such as touchscreens, which can provide access to a computer connected at the local site - up to 600 m away.

The CE680 allows access to a computer from both the local and remote consoles (USB keyboard, monitor, and mouse). Furthermore, the CE680 takes advantage of the newest fiber optic cable technology to connect the local and remote units; providing easy installation and a very long 600 m extension of KVM DVI signals.


Allows access to a computer or KVM installation from a local / remote console
Supports DVI-D interface and allows transmission of DVI single-link signals
Superior video quality of up to 1920 x 1200 @ 60 Hz (24-bits) - get an excellent, crisp image on your screen over long distance transmissions up to 600 m*
Touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Uses one fiber optic cable to connect the local and remote units
HDCP compatible
RS-232 serial port - connect to a serial terminal, or serial devices such as barcode scanners (Baud Rate 115200 bps)
PC Wakeup support - use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
Audio Enabled - supports stereo speakers and microphone
Rack mountable


CE680 Diagram


FunctionCE680LCE680R
Connectors
Console Ports3 x USB Type A Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
3 x USB Type A Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports2 x USB Type B Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
N/A
RS-2321 x DB-9 Female (Black)1 x DB-9 Male (Black)
Power1 x DC Jack (Black)1 x DC Jack (Black)
Optical In/Out1 x bi-directional SFP (LC)1 x bi-directional SFP (LC)
LEDs
Local1 (Green)N/A
Remote1 (Green)1 (Green)
Link1 (Green)1 (Green)
Switches
Operation Mode Selection1 x Pushbutton1 x Pushbutton
Wakeup PCN/A1 x Pushbutton
Fiber Optics
Operating Distance600 m with (SM) fiber600 m with (SM) fiber
Wavelength1310/1550 nm for SM1310/1550 nm for SM
Data RateSingle fiber: 3.125G bpsSingle fiber: 3.125G bps
Power ConsumptionDC5.3V, 10.2WDC5.3V, 9.0W
Environmental
Operating Temperature0–50°C0–50°C
Storage Temperature-20–60°C-20–60°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingMetalMetal
Weight1.10 kg ( 2.42 lb )1.10 kg ( 2.42 lb )
Dimensions (L x W x H)21.50 x 16.33 x 4.18 cm
(8.46 x 6.43 x 1.65 in.)
21.50 x 16.29 x 4.18 cm
(8.46 x 6.41 x 1.65 in.)
NoteOperating distance is approximate. These are typical maximum distance that may vary depending on factors such as fi ber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.Operating distance is approximate. These are typical maximum distance that may vary depending on factors such as fi ber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
