CL6700MW 17.3寸 LCD KVM 三合一 控制端 全高清 分辩率 1920x1080@60H 单滑轨 支持音频
编号:cl6700mw-ata-z
品牌:   [查询该品牌全部商品]
单位:个
积分:0
重量:1300 克
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (1450) | 评论 (0) | 评分(0)
商品介绍
详细参数
CL6700MW
DVI Full HD LCD 控制端

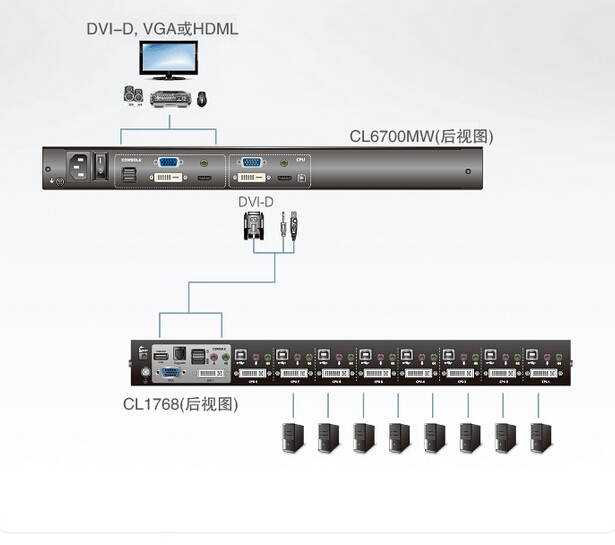

CL6700MW DVI Full HD LCD控制端为一款具备音频功能的KVM控制设备,整合17.3寸高画质宽屏幕、键盘与鼠标触控板于单一抽拉式机体内,并仅占1U机架空间。CL6700MW可作为KVM多电脑切换器的前端控制端使用,用户可将抽拉式控制端与兼容的ATENKVM多电脑切换器搭配使用,无需购买额外的KVM多电脑切换器,以节省机房使用空间并提升工作效率。


单轨道设计允许LCD显示器、键盘和触控屏独立进行操作。该控制端提供多组视频端口可连接三种类型的视频来源设备(VGA、DVI或HDMI)。为增加便利性,CL6700MW提供了2个HDMI接口,允许将高分辨率显示器连接控制端端口,或将兼容HDMI的切换器连接电脑端端口。

CL6700MW前端面板额外具备一组USB鼠标连接端口;后方面板的外接式控制端(键盘、鼠标及DVI、HDMI、VGA显示器),可供第二位用户进行访问。并在外接式控制端连接端口与电脑端连接端口分别配置一个扬声器插孔,以支持音频信号。





    整合KVM控制端与17.3寸Full HD LCD屏幕于单滑轨机体内;小于1U的机体设计,可在1U机架空间轻松抽拉操作
    配备标准型机架安装套件 - 另可选购简易型安装套件(单人安装)
    支持一组USB/DVI/VGA/HDMI接口的外接式控制端
    前端额外提供一组支持热插拔的USB鼠标连接端口(也可作为USB周边设备连接端口)
    视频分辨率 - 高达1920x1080@60Hz; DDC, DDC2, DDC2B
    支持音频功能(扬声器)
    标准105键键盘;Sun键盘仿真功能
    跨平台支持 - Windows、Linux、Mac及Sun
    可调整深度以安装于机架内
    支持固件更新
    控制端锁定设计 - 当控制端在非使用状态下,可将其安全锁定在原来的位置
    DDC仿真功能 - 可自动调整每台电脑的影像设定,并提供最佳影像输出质量
    支持多国键盘语言:英语(US)、英语(UK)、德语、德语(Swiss)、法语、西班牙语、繁体中文、日语、韩语、瑞典语、意大利语、俄语、匈牙利语、希腊语


电脑连接数     1
控制端切换选择     热键
接口     第二组控制端连接端口     键盘     1 x USB Type A 母头
鼠标     1 x USB Type A 母头
显示器     1 x DVI-D 母头 (白)
1 x HDB-15 (VGA) 母头 (蓝)
1 x HDMI 母头 (黑)
扬声器     1 x Mini Stereo Jack 母头 (绿)
电脑端连接端口     键盘 / 鼠标     1 x USB Type B 母头 (白)
显示器     1 x DVI-D 母头 (白)
1 x HDB-15 (VGA) 公头 (蓝)
1 x HDMI 母头 (黑)
扬声器     1 x Mini Stereo Jack 母头 (绿)
外接式鼠标 / 外围设备连接端口     1 x USB Type A 母头 (黑)
固件更新     1 x RJ-11 母头 (黑)
电源     1 x 3  相 AC Socket
开关     重置     1 x 半嵌式按键
电源     1 x 翘板开关
固件更新     1 x 滑动开关
LCD 电源     1 x 按键
LCD 调整     4 x 按键
LED 指示灯     电源     1 (绿)
Lock     Num     1 (绿)
Caps     1 (绿)
Scroll     1 (绿)
信号仿真     键盘 / 鼠标     USB
视频分辨率     1920 x 1080 @ 60Hz, DDC2B
输入额定值     100–240VAC; 50–60Hz; 1A
耗电量     120V,19.4W / 230V,19.4W
作业环境     操作温度

0-40°C
储存温度     -20-60°C
溼度     0 - 80% RH, 无凝结
机体属性     外壳     金属
重量     11.38 kg
尺寸
(长 x 宽 x 高)     58.92 x 48.00 x 4.40 cm


CL6700MW
DVI Full HD LCD Console

CL6700MW Zoom In CL6700MW  CL6700MW
The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.

The CL6700MW features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.


Integrated KVM console with a 17.3'' LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
Supports an external console with USB / DVI / VGA / HDMI connectors
Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
Audio support for connecting speakers
Standard 105-key keyboard; Sun keyboard emulation
Multiplatform support – Windows, Linux, Mac, and Sun
Adjustable depth to fi t within the rack
Firmware upgradeable
Console lock – enables the console drawer to remain securely locked away in position when not in use
DDC emulation – video settings of attached computers are automatically adjusted for optimal output to the monitor
Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek

More information about "Easy Rack Mounting"...



Computer Connections1
Console SelectionHotkey
ConnectorsExternal Console PortsKeyboard1 x USB Type A Female
Mouse1 x USB Type A Female
Monitor1 x DVI-D Female (White)
1 x HDB-15 (VGA) Female (Blue)
1 x HDMI Female (Black)
Speaker1 x Mini Stereo Jack Female (Green)
KVM PortsKeyboard / Mouse1 x USB Type B Female (White)
Monitor1 x DVI-D Female (White)
1 x HDB-15 (VGA) Male (Blue)
1 x HDMI Female (Black)
Speaker1 x Mini Stereo Jack Female (Green)
External Mouse / Peripheral1 x USB Type A Female (Black)
Firmware Upgrade1 x RJ-11 Female (Black)
Power1 x 3-prong AC Socket
SwitchesReset1 x Semi-recessed Pushbutton
Power1 x Rocker
F/W Upgrade1 x Slide
LCD Power1 x Pushbutton
LCD Adjustment4 x Pushbutton
LEDsPower1 (Green)
LockNum1 (Green)
Caps1 (Green)
Scroll1 (Green)
EmulationKeyboard /
Mouse
USB
Video1920 x 1080 @ 60Hz, DDC2B
I/P Rating100–240VAC; 50–60Hz; 1A
Power Consumption120V,19.4W / 230V,19.4W
EnvironmentOperating Temp.

0-40°C

Storage Temp.-20-60°C
Humidity0 - 80% RH, Non-condensing
Physical
Properties
HousingMetal
Weight11.38 kg
Dimensions
(L x W x H)
58.92 x 48.00 x 4.40 cm
  • * The specification and pictures are subject to change without notice.
