产品详情
|
CS72E ATEN 宏正 2端口 PS/2桌上型KVM(1.2米x2), 3合一SPHD15 接口, 无须外接电源--已停产
编号:CS72Ecz-at
品牌:ATEN [查询该品牌全部商品] 单位:个 积分:0 重量:316 克 规格:厂商已停产 型号: CS72E 为内建3合一(键盘/鼠标/影像)SPHD接口的KVM切换器,可同时控制2台服务器电脑主机。
商品售价:¥0.00
订购数量:
个
|
浏览 (1636) | 评论 (0) | 评分(0)
商品介绍
详细参数
2端口 KVM多电脑切换器
CS72E 为内建3合一(键盘/鼠标/影像)SPHD接口的KVM切换器,可同时控制2台服务器电脑主机。
功能特点:

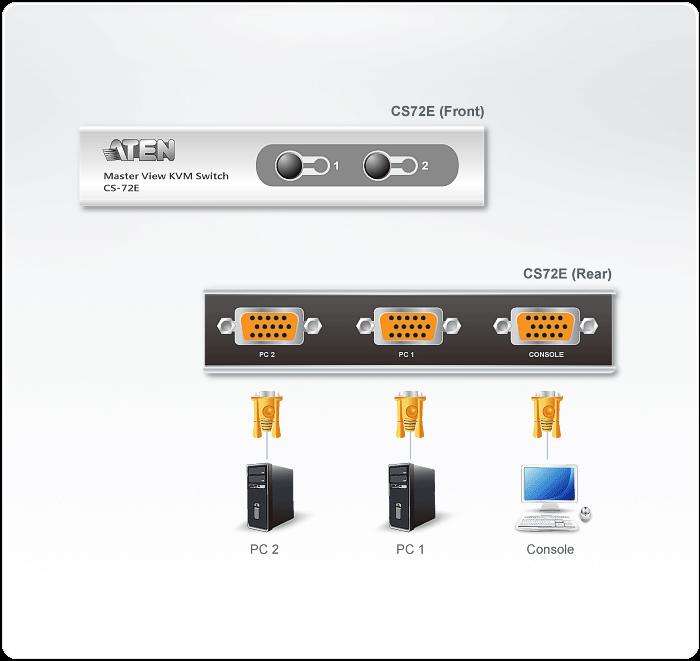

连线图:
技术规格:
电脑连接数 | 2 | |
电脑切换选择 | 切换按键、热键 | |
连接接口 | 计算机 | 2 x SPHD-15 母头 (黄) |
控制端 | 1 x SPHD-15 公头 (黄) | |
LED 指示灯 | 2 x 已选择连接埠 (绿) | |
模拟方式 | 键盘 | PS/2 |
鼠标 | PS/2 | |
耗电量 | DC9V 300mA | |
扫描时间 | 5 Sec | |
操作温度 | 0°C ~ 50°C | |
储存温度 | -20 °C ~ -60°C | |
湿度 | 0 - 80% RH, 非凝结 | |
外壳 | 金属 | |
重量 | 316 g | |
尺寸 ( 长 x 宽 x 高 ) | 12.50 x 8.00 x 2.50 cm |
2-Port PS/2 KVM Switch Discontinued
CS72EC
The KVM (Keyboard, Video, Mouse) switch is a control unit that allows access to two computers from a single console (keyboard, monitor, and mouse). With its custom designed connectors, the significantly reduces the number of ports required for a 2 port KVM switch. The design features a custom SPHD-15 male connector for the keyboard, video, and mouse, and SPHD-15 female connectors for the cables that connect the switch to the computers.
ROHS Weee
Share Add to Compare
Package Contents
1x 2 Port PS/2 KVM Switch
2x KVM Cables (4 ft., 1.2m)
1x Console Adapter Cable (20 in., 50cm)
1x Quick Start Guide
1x User Manual
Features
Diagram
Specification
Support and Download
One PS/2 console controls 2 computers.
Compact, modern case for convenient attractive placement.
Custom connector layout.
Power on detection - automatically switches to the first powered on port.
Computer selection via front panel pushbuttons and hotkeys.
Superior video quality - up to 2048 x 1536; DDC2B.
Supports Microsoft IntelliMouse and the scrolling wheel on most mice.
Auto Scan function to monitor computer operation.
Non-powered.
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX and FreeBSD
