ATEN 宏正 VE801T 支持4K*2K 3D 深色 HDMI 单网线传输 70M T表示该款只是发射端
编号:ve801T
品牌:ATEN   [查询该品牌全部商品]
单位:个
积分:0
重量:120 克
规格:
型号:
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (1187) | 评论 (0) | 评分(0)
商品介绍
详细参数



VE801T  HDBaseT
HDMI HDBaseT-Lite Transmitter
(HDBaseT Class B)

VE801T Zoom In VE801T  VE801T  VE801T

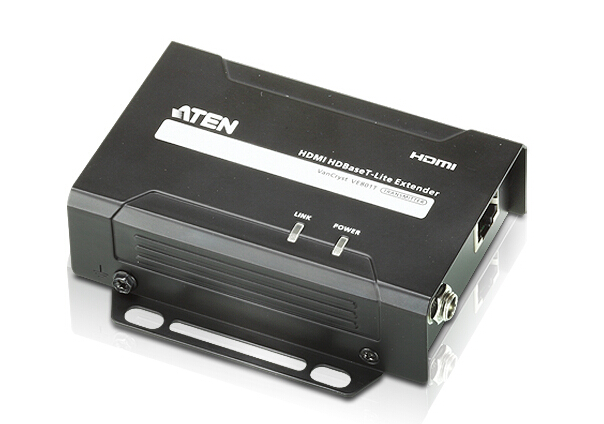

The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the

source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions,

plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy

method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent

accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The

VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality

to be extended at great distances.



HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
EDID Expert – configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens
Rack- Mountable




Video InputInterface1 x HDMI Type A Female (Black)
Impedance100Ώ
Max distance1.8 m
VideoMax. data rate10.2Gbps (3.4Gbps per lane)
Max. pixel clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max resolutions / DistanceUp to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m (Cat 5e/6) / 70m (Cat 6a)
AudioInput1 x HDMI Type A Female (Black)
Output1 x HDMI Type A Female (Black)
PowerConnector1 x DC Jack (Black) with locking
ConsumptionDC5V, 1.85W
EnvironmentOperating Temp.0-50°C
Storage Temp.-20°C - 60°C
Humidity40% - 85% RH, Non-condensing
Physical
Properties
HousingMetal
Weight0.24 kg
Dimensions
(L x W x H)
10.30 x 8.70 x 3.00 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
