vm3909H ATEN 宏正 9x9 HDMI HDBaseT-Lite矩阵式影音切换器
编号:vm3909H
品牌:   [查询该品牌全部商品]
单位:个
积分:0
重量:0 克
随着市场对HDBaseT产品的需求的增长,ATEN推出全新的HDMI HDBaseT-Lite矩阵式影音切换器-VM3909H。该款矩阵式影音切换器采用HDBaseT技术,只需通过一条Cat 6a线缆,即可将4K/Full HD影像、音频、红外线、电源的传输距离延伸至达70米。
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (1544) | 评论 (0) | 评分(0)
商品介绍
详细参数
随着市场对HDBaseT产品的需求的增长,ATEN推出全新的HDMI HDBaseT-Lite矩阵式影音切换器-VM3909H。该款矩阵式影音切换器采用HDBaseT技术,只需通过一条Cat 6a线缆,即可将4K/Full HD影像、音频、红外线、电源的传输距离延伸至达70米。

VM3909H与VE805接收器搭配使用时,即可支持ATEN的无缝切换(Seamless Switch™)和电视墙功能。ATEN独家的无缝切换(Seamless Switch™)技术利用FPGA影像处理器,可确保所有影音都能传递连续的影像串流、实时切换和稳定的信号传输;同时,通过轻松上手的图形化用户界面(Web GUI),可支持18组连接的设定档以客制化设定不同的电视墙样式。VM3909H也支持HDBaseT供电(POH)的功能,可以通过Cat 5e线缆供电给VE802R接收器,无需额外提供电源。

VM3909H可以通过前面板按键、红外线遥控器、RS-232控制器以及以太网络联机(Telnet/网络图形化用户界面)来控制,达到具有弹性且稳定的影音频号分送。此款矩阵式影音切换器为一套实用而整合的影音控制系统,可适用于一般家用、商业和会议中心等应用环境。

支持9端口HDMI输入以及4端口HDMI和HDBaseT的镜像输出
HDBaseT技术– 仅需通过一条Cat 5e/6/6a线缆远距离连接HDMI显示设备
HDBaseT抗干扰能力– HDBaseT技术可在传输高质量影像时提供较好的抗干扰能力
HDBaseT供电功能(POH)– 使用一条Cat 5e/6/6a线缆可将电源从矩阵式影音切换器传送电源至接收器*/**
无缝切换技术(Seamless Switch™)– ATEN独特的FPGA架构设计可统一视频格式以提供连续信号源、实时切换和稳定的信号传输*
电视墙功能– 通过直观的网络图形化用户界面(Web GUI)可自由设定电视墙画面的样式*
EDID ExpertTM– 可选择EDID设定的模式,能确保在不同屏幕间依然拥有最佳的分辨率并提供顺畅的画面显示
多重操作方式– 可通过前面板按键、红外线遥控器、RS-232控制器以及以太网络联机(Telnet /网络图形化用户界面)操控
双向红外线通道端口支持全频红外线信号- 30KHz至60KHz (包装所附的红外线接收器仅支持30 KHz-56KHz)
支持ATEN的LockProTM HDMI安全锁扣,可将HDMI线缆稳固地接在设备上
支持固件更新
可安装于机架上(VM3909H: 1U/2U设计)

备注:
* 需搭配特定兼容的接收器,方可支持无缝切换(Seamless Switch™)、电视墙和HDBaseT供电(POH)功能。
** /VM3909H每端口最高可提供52 VDC, 15.4W的电源,总电源输出最高可达35W/75W,请确保连接到VM3909H的设备的总耗电量勿超出此安全范围。


视频输入接口9 x HDMI Type A 母头 (黑)
阻抗100Ώ
最远距离1.8 m
视频输出接口9 x HDMI Type A 母头 (黑) ;
9 x RJ-45 母头
阻抗100Ώ
最远距离HDMI: 远达15m
HDBaseT (Class B): 远达4K@35m(Cat 5e/6) / 40m(Cat 6a);
1080p@60m(Cat 5e/6) / 70m(Cat 6a)
视频最大数据传输率10.2 Gbps (3.4 Gbps每通道)
最大像素时钟频率340 MHz
规范HDMI (3D,深色, 4K);
兼容于HDBaseT、HDCP 1.4规格
消费性电子控制(CEC)
最高分辨率高达4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
最远距离高达70m*
控制RS-232接口: 1 x DB-9 母头 (黑);
传输速率: 19200, 数据位: 8, 停止位: 1, 同位: 无, 流量控制: 无
红外线通道9 x 迷你立体声插孔 母头 (黑);
全频的红外线信号从30KHz至60KHz
以太网1 x RJ-45 母头
EDID 设定EDID模式: 默认/端口1/混合/定制
电源接口1 x 3针脚交流电源插座
输入额定值100-240 VAC; 50-60 Hz; 1.0A
耗电量110 VAC, 134.4 W
作业环境操作温度0-50°C
储存温度-20°C - 60°C
湿度0% - 80% RH, 无凝结
机体属性外壳金属
重量7.33 kg
尺寸 (长 x 宽 x 高)43.24 x 38.23 x 8.80 cm

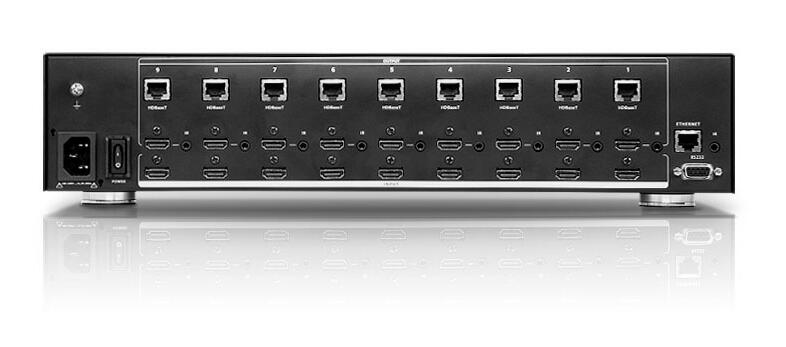

VM3909H Diagram


9 x 9 HDMI HDBaseT-Lite Matrix Switch

VM3909H Zoom In VM3909H  VM3909H  VM3909H
With the rapid development of HDBaseT technology, ATEN has released the new VM3909H HDMI HDBaseT-Lite Matrix Switch. The switch extends uncompressed 4K / Full HD digital video, audio, IR and power via HDBaseT technology through a single Cat 6a cable up to 40/70 meters.

When the VM3909H is combined with VE805R receivers, it supports both ATEN Seamless Switch™ technology and Video Wall functionality. ATEN’s exclusive Seamless Switch™ technology employs an FPGA graphics processor to ensure continuous video streaming, real-time control and stable signal transmission across all sources. The Video Wall functionality allows you to create 18 video wall profiles for custom screen layouts through an easy-to-use web interface. The Power over HDBaseT (POH) feature provides an ingenious way to power the VE802R receivers through the Cat 5e cable without the need of using an additional power supply.


The VM3909H offers flexibility with reliable signal distribution controlled via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections. It’s designed as a functional and integrated control system built for residential, commercial and conference center settings.


Supports 9 HDMI inputs and mirrored 9 HDMI and HDBaseT outputs
The mirrored HDMI outputs can be used to verify the corresponding HDBaseT output or as an additional video display*
HDBaseT Connectivity – connects HDMI displays over a long distance via one Cat 5e/6/6a cable
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission
Power over HDBaseT (POH) – supplies power over a long distance from the switch to a receiver over a single Cat 5e/6/6a cable** / ***
Seamless Switch™ Technology – ATEN FPGA engine unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions**
Video Wall - allows you to create custom video wall layouts via intuitive web GUI**
EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections
Bi-directional IR channel ports support full frequency IR signals from 30 KHz to 60 KHz
Supports ATEN's LockPro™ HDMI cable lock for securing HDMI cables to the device
Firmware Upgradeable
Rack Mountable (VM3909H: 2U Design)

Note:
* The HDMI outputs can't support the Video Wall and Seamless Switch™ functions.
** The Seamless Switch™, Video Wall and POH features are only available when used a compatible receiver.
*** The VM3909H can provide up to 15.4 W @ 54 VDC of power per port and 75W of total power ; please ensure that the power consumption of the devices connected to the VM3909H does not exceed this limit.




Video Input
Interfaces9 x HDMI Type A Female (Black)
Impedance100 Ώ
Max. Distance1.8 m
Video Output
Interfaces9 x HDMI Type A Female (Black) ;
9 x RJ-45 Female
Impedance100 Ώ
Max. DistanceHDMI: up to 15 m
HDBaseT (Class B): 4K up to 35 m (Cat 5e/6) / 40 m (Cat 6a);
1080p up to 60 m (Cat 5e/6) / 70 m (Cat 6a)
Video
Max. Data Rate10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K); HDCP 1.4 Compatible
Consumer Electronic Control (CEC)
HDBaseT Compatible
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. DistanceUp to 70 m
Control
RS-232Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR Channel9 x Mini Stereo Jack Female (Black);
30~60 KHz full range transmission
Ethernet1 x RJ-45 Female
EDID SettingsEDID Mode: Default / Port1 / Remix / Customized
Power
Connectors1 x 3-Prong AC Socket
Maximum Input Power Rating100-240 VAC; 50-60 Hz; 1.0A
Consumption110 VAC, 134.4 W
Environmental
Operating Temperature0-50°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight7.33 kg ( 16.15 lb )
Dimensions (L x W x H)43.24 x 38.23 x 8.80 cm
(17.02 x 15.05 x 3.46 in.)
Carton Lot1 pc
