CS1316 ATEN 宏正 16端口 PS/2+USB混接机架型OSD KVM, 支持SUN、MAC可級联
编号：CS1316-at-z
品牌： [查询该品牌全部商品] 单位：个 积分：0 重量：2100 克 CS1316 KVM多电脑切换器具备高扩充能力，其可采用,占口级连方式，另外串接16台KVM多电脑切换器，并通过一组控制端(键盘、显示器及鼠标)管理多达256台电脑。CS1316在控制端及电脑端皆支持USB及PS/2双接口。
商品售价：￥0.00
订购数量：
个
|
商品介绍
详细参数
16端口PS/2 - USB KVM多电脑切换器
CS1316 KVM多电脑切换器具备高扩充能力，其可采用占口级联方式*另外串接16台KVM多电脑切换器，并通过一组控制端(键盘、显示器及鼠标)管理多达256台电脑。CS1316在控制端及电脑端都支持USB及PS/2双接口。
功能特点：

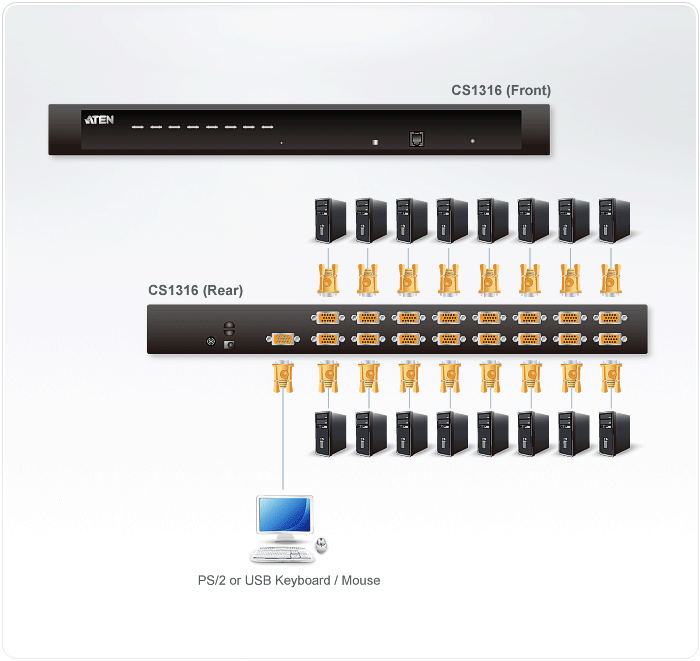

连线图：
技术规格：
| 电脑连接数 | 直接连接数 | 16 | |
| 最大连接数 | 256 ( 占口级联) | ||
| 连接端口选择 | OSD 、热键、按键 | ||
| 界面 | 控制端端口 | 键盘 | 1×SPHD-18 公头 ( 黄 ) |
| 显示器 | |||
| 鼠标 | |||
| 电脑端端口 | 键盘 | 16×SPHD-15 母头 ( 黄 ) | |
| 显示器 | |||
| 鼠标 | |||
| 固件更新 | 1×RJ-11 母头 ( 黑 ) | ||
| 电源 | 1×DC 插座 | ||
| 开关 | 连接端口 | 16×按键 | |
| 固件更新 | 1×滑动开关 | ||
| LED 指示灯 | 上线 | 16 ( 橘 ) | |
| 已选择 | 16 ( 绿 ) | ||
| 电源 | 1 ( 深绿 ) | ||
| 模拟功能 | 键盘 / 鼠标 | PS/2, USB | |
| 视频分辨率 | 2048 x 1536; DDC2B | ||
| 扫描区间 | 1- 255秒 | ||
| 耗电量 | DC 5.3 V ; 6.6 W | ||
| 作业环境 | 操作温度 | 0–50°C | |
| 储存温度 | -20–60°C | ||
| 湿度 | 0–80% RH, 无凝结 | ||
| 机体属性 | 外壳 | 金属 | |
| 重量 | 2.10 kg | ||
| 尺寸 ( 长 × 宽 × 高 ) |
43.30 x 16.00 x 4.40 cm | ||
Home Products KVM Rack KVM Switches CS1308
CS1316
Go Compare (0)
8-Port PS/2-USB VGA KVM Switch
CS1308
The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
ROHS Weee
Share Add to Compare
Package Contents
1x CS1308 KVM Switch with Rack Mount Kit
1x Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x Power Adapter
1x Mounting Kit
1x User Instructions
One USB-PS/2 console controls 8 computers
Cascade up to 2 levels - control up to 64 computers
Dual Interface - supports computers with PS/2 or USB keyboards and mice
Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Supports USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
Superior video quality - up to 2048 x 1536; DDC2B
Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Auto Scan feature for monitoring user-selected computers
Hot pluggable - add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Firmware upgradeable
No software installation required
Designed for desktop or rack mount (19" system rack, 1U)
