CS1708A ATEN 宏正 8端口 PS/2+USB混接机架型OSD KVM,支持SUN、MAC,独立串接口
编号:CS1708A
品牌:   [查询该品牌全部商品]
单位:个
积分:0
重量:2660 克
CS1708A是一套先进的多电脑管理方案,其可通过一组PS/2或USB界面的控制端(键盘、显示器及鼠标)访问多台服务器。一台 CS1708A可直接管理8台服务器;通过菊式串联另外再串接31台CS1708A,即可从单一键盘-显示器-鼠标所组成的控制端管理多达256台服务器。
商品售价:¥0.00
订购数量:
订购 加入收藏

浏览 (1611) | 评论 (0) | 评分(0)
商品介绍
详细参数

8端口PS/2-USB KVM多电脑切换器

CS1708A

CS1708A是一套先进的多电脑管理方案,其可通过一组PS/2或USB界面的控制端(键盘、显示器及鼠标)访问多台服务器。一台 CS1708A可直接管理8台服务器;通过菊式串接另外再串接31台CS1708A,即可从单一键盘-显示器-鼠标所组成的控制端管理多达256台服务器。

CS1708A

此外,该两款多电脑切换器均在前端面板内建一个USB端口,使每台连接的服务器可依次访问该USB端口所连接的周边设备。



功能特点:

  • 一组USB-PS/2控制端可分别直接管理8台服务器
  • 菊式串接另外31台设备-单一控制端可管理高达256台服务器
  • 前端面板内建的USB连接端口,使每一台连接的服务器均可轻松访问USB外围设备*
  • 双接口-支持配备PS/2或USB键盘及鼠标的服务器与控制端
  • 跨平台支持-Windows 2000/XP/Vista、Linux、Mac和Sun
  • Video DynaSyncTM视频动态同步显示-可储存控制端屏幕的EDID信息以最佳化屏幕分辨率
  • 支持USB键盘 (PC、Mac和Sun)
  • PS/2及USB接口自动侦测
  • USB与PS/2键盘及鼠标信号仿真–无论控制端是否切换到该服务器均可确保开机无误
  • 高视频质量-分辨率高达2048×1536;DDC2B
  • 无需安装软件-可通过前端面板按键、键盘热键及多国语言OSD屏幕选单轻松选择服务器
  • 在菊式串接的架构下,可自动侦测设备机台位置并显示于前端面板的LED上,无需手动进行DIP设定
  • 当机台顺序改变时,可自动重编连接端口号
  • 双层密码安全机制-唯有授权使用者才能浏览与控管服务器;最多提供1位管理员和4位使用者的授权,其拥有各自的设定数据
  • 自动扫描模式可持续监控使用者所选择的服务器
  • 支持广播模式-可同步对选择的所有服务器传达操作指令
  • 支持热插拔-不需关闭电源即可随时增加或移除服务器
  • 可通过热键和OSD开启/关闭警示音
  • 可通过菊式串接线,同步为所有串接的KVM多电脑切换器进行固件更新
  • 可安装于19"的系统机架(1U)

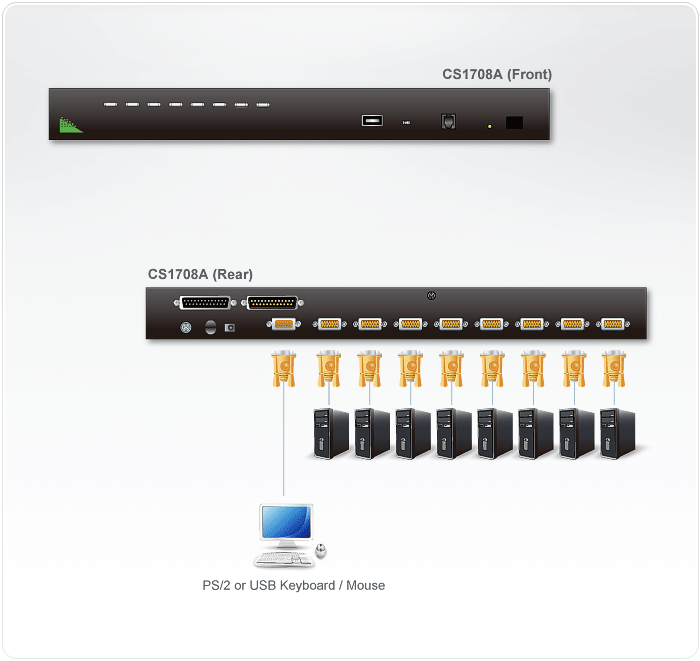

    连线图:

    技术规格:

    电脑连接数 直接连接数 8
    最大连接数 256 (菊式串接)
    连接端口选择 OSD屏幕选单、热键、面板按键
    接口 控制端端口 1×SPHD-18 公头(黄)
    电脑端端口 8×SPHD-15/17 母头(黄)
    菊式串接端口 串入 1×DB-25 母头(黑)
    串出 1×DB-25 公头(黑)
    固件更新 1×RJ-11母头(黑)
    USB端口 1×USB Type A 母头
    电源 1×DC电源插座 母头(黑)
    LED指示灯 上线 8(橘)
    已选择 8(绿)
    1X2位数, 7节LED显示(橘)
    电源 1(深绿)
    开关 连接端口选择 8 x 按键
    固件更新
    系统重置
    1×滑动开关
    模拟功能 键盘/鼠标 PS/2, USB
    视频分辨率 2048 x 1536; DDC2B
    扫描区间(OSD选择) 使用者设定;1- 255秒
    耗电量 DC 5.3 V ; 5 W
    操作环境 操作温度 0–50°C
    贮存温度 -20–60°C
    湿度 0–80% RH, 无凝结
    机体属性 外壳 金属
    重量 2.66 Kg
    尺寸
    (长×宽×高)
    43.30 x 16.00 x 4.40 cm

  • 8-Port PS/2-USB VGA KVM Switch with Daisy-Chain Port and USB Peripheral Support
    CS1708A
    The CS1708A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1708A can control up to 8 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 256 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
    ROHS Weee
    Share   Add to Compare
    Package Contents
    1x KVM Switch with Standard Rack Mounting Kit
    2x Custom KVM Cable Sets
    1x Console Cable
    1x Firmware Upgrade Cable
    1x Foot Pad Set(4 PCS)
    1x Power Adapter
    1x User Instructions

    One USB-PS/2 console controls up to 8 computers
    Daisy-chain up to 31 additional units - control up to 256 computers from a single console
    Front accessible USB port allows each computer to access USB peripherals *
    Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
    Multiplatform support - Windows, Linux, Mac and Sun
    Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
    Supports USB keyboards for PC, Mac and Sun
    Auto PS/2 and USB interface detection
    USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
    Superior video quality - up to 2048 x 1536; DDC2B
    No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
    Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
    Port names automatically reconfigured when station sequence is changed
    Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
    Auto Scan feature for monitoring user-selected computers
    Broadcast Mode - operation simultaneously performed on all selected computers... etc
    Hot pluggable - add or remove computers without having to power down the switch
    Buzzer on/off via hotkey and OSD
    Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable
    Rack mountable in 19" system rack (1U)

    * The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
