ATEN 宏正 KL1516aiM 16端口双滑轨 17寸LCD KVM多电脑切换器
编号：KL1516Ai
品牌： [查询该品牌全部商品] 单位：个 积分：0 重量：16000 克 KL1516Ai双滑轨LCD KVM多电脑切换器，为一组控制设备，其允许从一组控制端(键盘、显示器、鼠标)安全控管高达16台电脑；其整合了LCD屏幕、键盘及触控板于抽拉式的机体内，并可安装于机架上。
LCD屏幕及键盘/触控板模块可以独立抽拉，为了提高您机房内空间使用的效率，当键盘/触控板模块不需要使用时，可以将其推回收好，并展开轻薄的LCD屏幕 – 靠在机架上，以方便监控电脑的运作状态。 KL1516Ai支持IP联机，可让本地及远程的操作者监控及访问其所连接的电脑，由于KL1516Ai使用TCP/IP通讯协议，因此使用者可以通过连网的电脑 – 无论该电脑在大楼任何地方、在街道上或甚至在地球另一端，都可访问KL1516Ai。
商品售价：￥0.00
订购数量：
个
|
商品介绍
详细参数
16端口双滑轨LCD KVM多电脑切换器
LCD 控制端 + Cat 5 高密度KVM多电脑切换器配备远程管理功能
KL1516Ai双滑轨LCD KVM多电脑切换器，为一组控制设备，其允许从一组控制端(键盘、显示器、鼠标)安全控管高达16台电脑；其整合了LCD屏幕、键盘及触控板于抽拉式的机体内，并可安装于机架上。
LCD屏幕及键盘/触控板模块可以独立抽拉，为了提高您机房内空间使用的效率，当键盘/触控板模块不需要使用时，可以将其推回收好，并展开轻薄的LCD屏幕 – 靠在机架上，以方便监控电脑的运作状态。
KL1516Ai支持IP联机，可让本地及远程的操作者监控及访问其所连接的电脑，由于KL1516Ai使用TCP/IP通讯协议，因此使用者可以通过连网的电脑 – 无论该电脑在大楼任何地方、在街道上或甚至在地球另一端，都可访问KL1516Ai。
体积小、高密度的RJ-45连接头及Cat 5e/6连接设计，提供简便、有效率的布线方式，通过KVM转换连接线连接电脑，可让PC、Mac、Sun电脑与串口设备在同个架构下混合使用。
为了提高使用的便利性，背板上提供一组键盘、鼠标及屏幕的连接端口，可让您从本地控制端管理切换器；另外，键盘模块上额外的USB鼠标连接端口，可让您使用外接式鼠标以取代触控板。
此外，其所提供的进阶功能包含可同时显示高达16组电脑影像输出的分割画面模式，及可让身处各地的登入使用者便利、快速沟通的信息板，KL1516Ai是机房管理最佳的解决方案。
功能特点：
* 兼容的KVM多电脑切换器: KH1508A/KH1516A, KH0116, ACS1208A/ACS1216A, CS1708A/CS1716A, KH1508/KH1516
管理功能
简易使用者界面
*仅在本地控制端操作下
先进的安全机制
虚拟远程桌面窗口

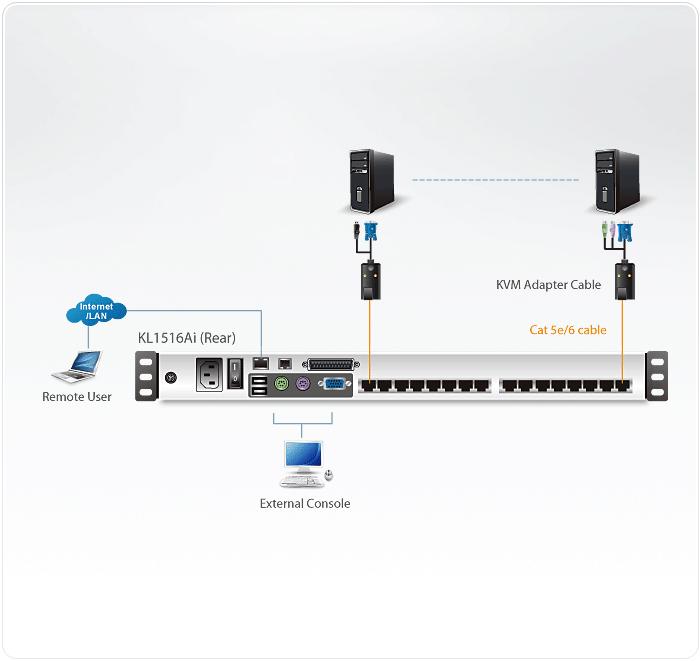

连线图：
技术规格：
| 连接电脑数 | 直接 | 16 | |
| 最多 | 256 (通过菊式串联) | ||
| 控制端连接数 | 本地 | 1 | |
| 远程 | |||
| 连接端口选择 | OSD屏幕选单、热键、按键 | ||
| 接口 | 控制端连接端口 | 键盘 | 1 x 6-pin Mini-DIN 母头 (紫) 1 x USB Type A 母头 (白) |
| 屏幕 | 1 x HDB-15 母头 (蓝) | ||
| 鼠标 | 1 x 6-pin Mini-DIN 母头 (绿) 1 x USB Type A 母头 (白) | ||
| 电脑端连接端口 | 16 x RJ-45 母头 | ||
| 菊式串联 | 1 x DB-25 公头 (黑) | ||
| 电源 | 1 x 3-prong AC socket | ||
| 固件更新 | 1 x RJ-11 母头 (黑) | ||
| 外接式鼠标 | 1 x USB Type A (母头) | ||
| 网络 | 1 x RJ-45 母头 | ||
| PON | 1 x RJ-45 母头 | ||
| 开关 | 电源 | 1 x 翘板开关 | |
| LCD电源 | 1 x 按键 | ||
| LCM调整 | 4 x 按键 | ||
| 连接端口选择 | 16 x 按键 | ||
| 固件更新 | 1 x 滑动开关 | ||
| KVM重置 | 1 x 半嵌式按键 | ||
| 机台 | 2 x 按键 | ||
| LED指示灯 | 机台 | 2 x 7节显示 (橘) | |
| 连接端口 | 上线 | 16 (绿) | |
| 已选择 | 16 (橘) | ||
| 电源 | 1 (蓝) | ||
| Lock | Num | 1 (绿) | |
| Caps | 1 (绿) | ||
| Scroll | 1 (绿) | ||
| 连线 | 1 (绿) | ||
| 10/100 Mbps | 1 (橘/绿) | ||
| LCD电源 | 1 (橘) | ||
| 模拟功能 | 键盘/鼠标 | PS/2; USB | |
| 视频分辨率 | 1280 x 1024 @ 75 Hz; DDC2B (50 m, 本地); 1600 x 1200 @ 60 Hz; DDC2B (40 m, 远程) | ||
| 扫描区间 | 1–255 秒 | ||
| 输入额定值 | 100–240V AC, 50/60 Hz, 1A | ||
| 耗电量 | 120V, 33W / 230V, 34W (17“); 120V, 34W / 230V, 36W (19“) | ||
| 作业环境 | 操作温度 | 0 - 40°C | |
| 储存温度 | -20 - 60°C | ||
| 湿度 | 0–80% RH, 无凝结 | ||
| 机体属性 | 外壳 | 金属 | |
| 重量 (17“/19“) | 16.00 kg / 16.25 kg | ||
| 尺寸 (长 x 宽 x 高) |
70.12 x 48.00 x 4.40 cm | ||
KL1516Ai
16-Port Dual Rail LCD KVM Switch
LCD Console + Cat 5 High-Density KVM Switch with KVM over IP
KL1516Ai Zoom In KL1516Ai KL1516Ai KL1516Ai KL1516Ai
The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.
The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.
The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.
Compact, high-density, RJ-45 connectors and Cat 5e/6 cable make for a compact, efficient, wiring configuration, while the use of KVM Adapter Cables to link to the computers, permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
For added convenience, ports for an external keyboard, monitor, and mouse are provided on the rear panel – permitting you to manage the switch from a local console. There is also an external USB mouse port on the keyboard module, allowing you to use an external mouse, rather than the touchpad.
Enhanced features include a Panel Array Mode™ that displays the video output of up to 16 computers at the same time, and a Message Board that allows logged in users to conveniently and instantly communicate with one other – no matter where in the world they actually are. The KL1516Ai is an ideal solution for your server room management.
Hardware
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 17¨ or 19¨ LED-backlit LCD monitor in a Dual Rail housing
A single console controls up to 16 computers
Daisy chain up to 15 additional KVM switches to control up to 256 computers*
One bus for remote KVM over IP access
Space-saving RJ-45 connectors and Cat 5e/6 cabling
KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
Extra console por – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
Multiplatform support: PC, Mac, Sun and Serial
Supports external USB mouse
Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
Dual Rail – LCD monitor slides independently of the keyboard/touchpad
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock – enables the console drawer to remain securely locked away in position when not in use
LCD power button helps save energy and prolong displays´ life
* Compatible KVM switches: KH1508A/KH1516A, KH0116, ACS1208A/ACS1216A, CS1708A/CS1716A, KH1508/KH1516
Management
Up to 64 user accounts – up to 32 concurrent remote logins
End session feature – administrators can terminate any running session
Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
Port Share Mode allows multiple users to gain access to a server simultaneously
Remote power control for attached Power Over the NET™ devices
Integration with ALTUSEN CC2000 Management software
Event logging and Windows-based Log Server support
Local Log Event
Firmware upgradeable
IPv6 capable
Easy-to-Use Interface
Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
Panel Array Mode™
Keyboard broadcast* – keyboard input can be duplicated on all the attached servers
* Local Console only
Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure users log in from browser
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption
IP/MAC Filter support for enhanced security protection
Configurable user and group permissions for server access and control
Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full-screen or sizable and scalable Virtual Remote Desktop
Message board feature allows logged in users to communicate with each other
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
On-screen keyboard with multi language support
BIOS-level access
Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
