CL1000M ATEN 宏正 三合一LCD控制台, 支持PS2介面,（17"）
编号：CL1000
品牌： [查询该品牌全部商品] 单位：个 积分：0 重量：12300 克 CL1000整合17"LCD液晶显示器、键盘及触控板于1U高度的抽拉式LCD控制端模块，以提供市场客户对整合型控制端装置另一新选择。已经拥有KVM切换器的使用者，不需支付额外的费用便可以享受LCD KVM的好处。
商品售价：￥0.00
订购数量：
个
|
抽拉式LCD控制端模块
CL1000整合17"LCD液晶显示器、键盘及触控板于1U高度的抽拉式LCD控制端模块，以提供市场客户对整合型控制端装置另一新选择。已经拥有KVM切换器的使用者，不需支付额外的费用便可以享受LCD KVM的好处。
功能特点：

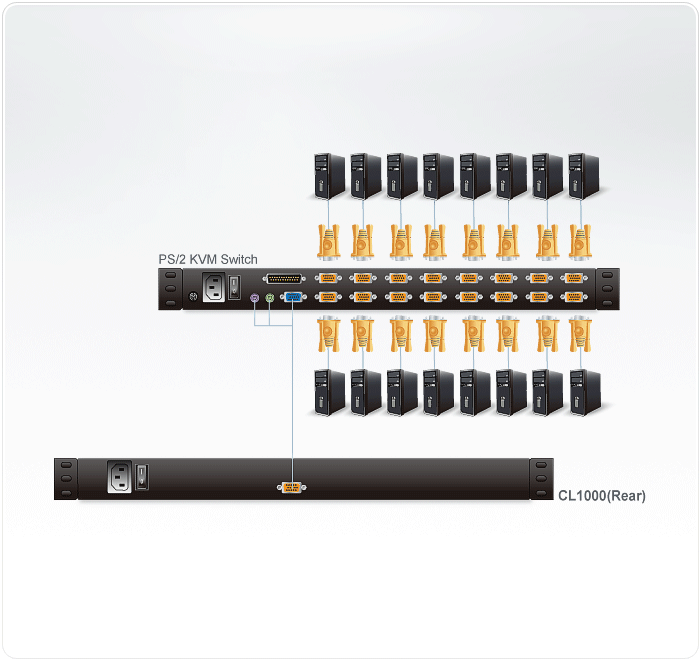

连线图：
技术规格：
| 连接头 | 电脑连接端口 | 键盘/显示器/鼠标 | 1 x SPHD-15 母头 (黄) |
| 电源 | 1x三孔交流电插座 | ||
| 开关 | LCD模块调整 | 4 x 按键 | |
| 重新启动 | 1 x 嵌入式 | ||
| 电源 | 1 x 按钮 | ||
| LED 指示灯 | 电源 | 1 (深蓝色) | |
| Num Lock | 1 (绿色) | ||
| Caps Lock | 1 (绿色) | ||
| Scroll Lock | 1 (绿色) | ||
| 模拟方式 | 键盘/鼠标 | PS/2 | |
| 视屏分辨率 | 1280 x 1024; DDC2B | ||
| I/P Rating | 100-240VAC, 50/60Hz; 1A | ||
| 耗电量 | 120V/21W; 230V/24W | ||
| 操作环境 | 操作温度 | 0-40° C | |
| 储存温度 | -20-60° C | ||
| 湿度 | 0-80% RH, 无凝结 | ||
| 机体特性 | 材质 | 金属 + 塑料 | |
| 重量 | 12.30 Kg | ||
| 尺寸 (长x宽x高) | 53.40 x 48.00 x 4.40 cm(19"/1U) | ||
Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with a 19" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
LCD module rotates up to 115˚ for a more comfortable viewing angle
Improved design – optional single person installation kit
Compatible with most KVM switches
Internal power supply
High video resolution:
• Up to 1280 x 1024 @75Hz
• Supports DDC, DDC2, DDC2B
• DDC emulation of the LCD monitor – Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
Keyboard language support: English (US); English (UK);French; German; German (Swiss); Greek; Italian; Japanese;Hungarian; Korean; Spanish; Swedish; Traditional Chinese;Russian
| Connectors | Console Ports | Keyboard/Video/Mouse | 1 x SPHD-15 Female (Yellow) |
| Power | 1 x 3-prong AC Socket | ||
| Switches | LCD Adjustment | 4 x Pushbuttons | |
| LCD Power | 1 x Pushbuttons | ||
| LEDs | CPU | 1 (Green) | |
| Num Lock | 1 (Green) | ||
| Caps Lock | 1 (Green) | ||
| Scroll Lock | 1 (Green) | ||
| Emulation | Keyboard/Mouse | PS/2, USB (with 2L-52xxUP USB KVM cable) | |
| Video | 1280 x 1024 @ 75 Hz ; DDC2B | ||
| I/P Rating | 100-240 VAC; 50/60 Hz; 1A | ||
| Power Consumption | 120 V, 23 W; 230 V, 24 W | ||
| Environment | Operating Temp. | 0 - 50˚C | |
| Storage Temp. | -20 - 60˚C | ||
| Humidity | 0 - 80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal + Plastic | |
| Weight | 11.06 kg | ||
| Dimensions ( L x W x H ) | 48.30 x 58.52 x 4.40 cm | ||
- * The specification and pictures are subject to change without notice.
